LMG3411R050RWHT - Texas Instruments

Description: 600-V 50mΩ GaN with integrated driver and cycle-by-cycle overcurrent protection

Download LMG3411R050RWHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

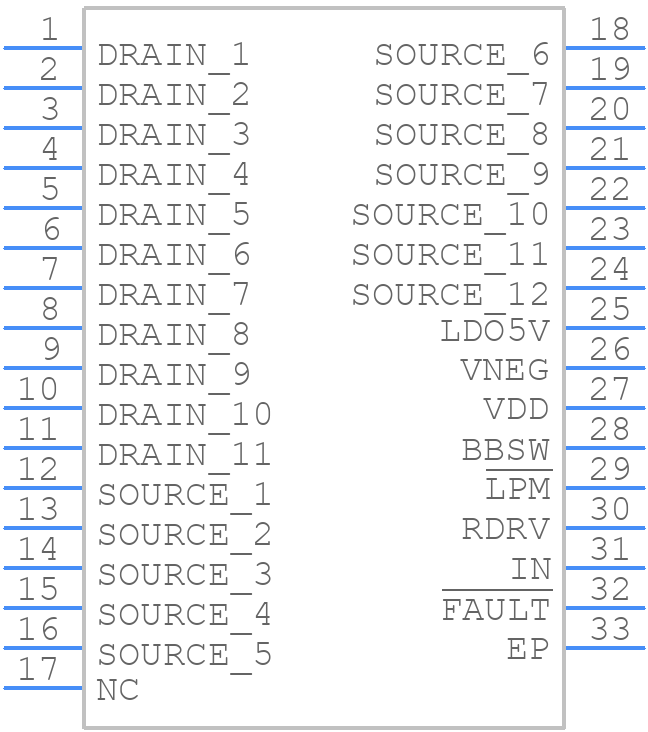

LMG3411R050RWHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMG3411R050RWHT - Texas Instruments PCB footprint - Other - Other - LMG3411R050RWHT-4
click to zoom
3D Models
LMG3411R050RWHT - Texas Instruments - 3D model - Other - LMG3411R050RWHT-4
click to zoom

LMG3411R050RWHT Details

  • Manufacturer Part Number:

    LMG3411R050RWHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-03-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

LMG3411R050RWHT Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the LMG3411R050RWHT is 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling of the LMG3411R050RWHT can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • A good PCB layout for the LMG3411R050RWHT should prioritize low inductance and resistance in the power paths, and ensure that the device's thermal pad is connected to a solid ground plane. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device's pins should be routed away from noise-sensitive areas of the board.
  • The LMG3411R050RWHT has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, additional protection can be achieved by using external components such as TVS diodes and fuses. It's also important to ensure that the device is operated within its recommended operating conditions and that the input voltage is regulated and filtered to prevent voltage spikes and transients.
  • The recommended gate drive voltage for the LMG3411R050RWHT is between 10V and 15V. However, the device can operate with a gate drive voltage as low as 6V, but this may affect its performance and efficiency.
