Texas Instruments provides a recommended PCB layout in the application note SLVA485, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The LMH0002 requires a stable power supply with adequate decoupling to ensure proper operation. TI recommends using a low-ESR capacitor (e.g., 10uF) placed close to the device, and a 1uF capacitor in parallel with a 10nF capacitor for additional filtering. The power supply should be regulated to within 5% of the recommended operating voltage.
The LMH0002 is designed to support cable lengths up to 100 meters (328 feet) at data rates up to 1.5 Gbps. However, the actual cable length supported may vary depending on the specific application, cable quality, and environmental conditions.
Yes, the LMH0002 can be used in redundant or fault-tolerant systems. TI provides guidelines for implementing redundant systems in the application note SLVA486, which includes recommendations for device configuration, signal routing, and fault detection.
TI provides a troubleshooting guide in the application note SLVA487, which includes steps for identifying and resolving common issues, such as signal integrity problems, data corruption, and device malfunction. The guide also includes recommendations for using oscilloscopes and other diagnostic tools.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMH0002TMAX/NOPB Overview

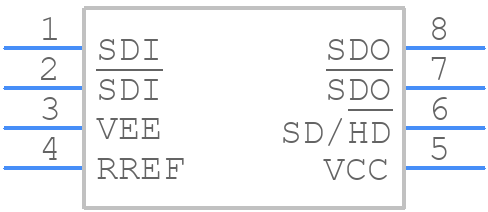

Use the download button to access the LMH0002TMAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Line Driver or Receivers
