- Part Number LMH0024MA
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-16N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMH0024MA Details
-
Manufacturer Part Number:
LMH0024MA
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
JESD-30 Code:
R-PDSO-G16
-
JESD-609 Code:
e0
LMH0024MA Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLWA043, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Texas Instruments recommends using capacitors with low ESR and high ripple current capability, such as ceramic or film capacitors. The application note SLWA043 provides more detailed guidance on capacitor selection.
-
The LMH0024MA is rated for operation from -40°C to 85°C, but the maximum operating temperature range may be limited by the specific application and the thermal management design. It is recommended to consult the datasheet and application notes for more information on thermal management and derating.
-
To ensure EMC, it is recommended to follow proper PCB layout and design practices, such as separating analog and digital grounds, using shielding and filtering, and minimizing loop areas. Texas Instruments provides guidance on EMC design in the application note SLWA043.
-
The recommended power-up sequence for the LMH0024MA is to apply the input voltage (VIN) before the enable signal (EN). This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
Trust Checks
System Verified
LMH0024MA Overview

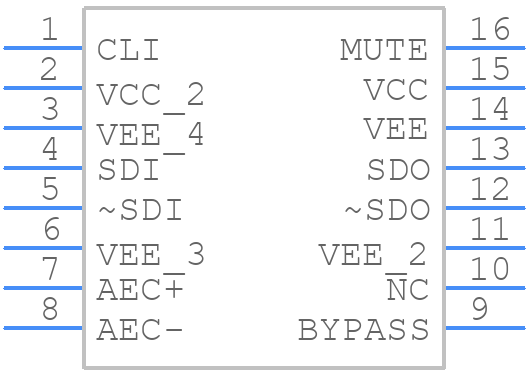

Use the download button to access the LMH0024MA schematic symbol, PCB footprint, and 3D model.
