LMH0040SQE/NOPB - Texas Instruments

Description: HD, SD, DVB-ASI SDI Serializer and Driver with LVDS Interface

Download LMH0040SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

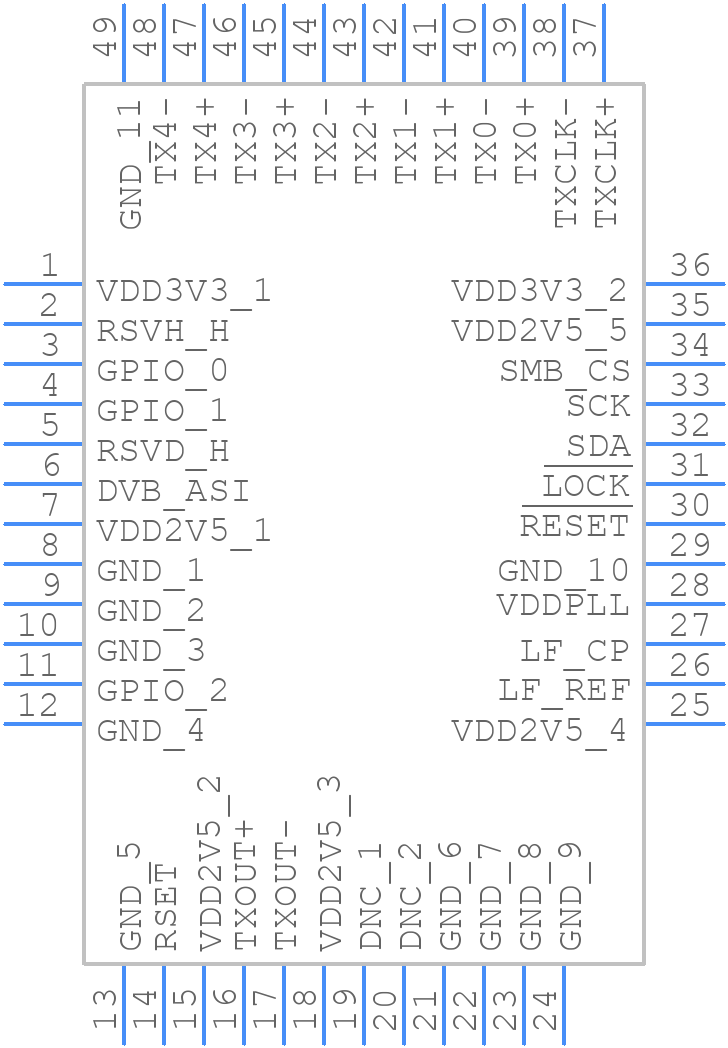

LMH0040SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0040SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
LMH0040SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

LMH0040SQE/NOPB Details

  • Manufacturer Part Number:

    LMH0040SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LLP-48

  • Pin Count:

    48

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Driver Number of Bits:

    5

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    5

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.7 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3.465 V

  • Supply Voltage1-Min:

    3.135 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMH0040SQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0040SQE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • Proper termination for the LMH0040SQE/NOPB involves using a combination of series and parallel termination resistors to match the impedance of the transmission line. The datasheet provides guidelines for termination, but additional simulation and testing may be required for specific applications.
  • The LMH0040SQE/NOPB requires a specific power sequencing to prevent damage to the device. The recommended power-up sequence is to apply the analog power supply (VCCA) before the digital power supply (VCCD). The power-down sequence should be reversed.
  • The LMH0040SQE/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a heat sink or a thermally conductive PCB material, and the ambient temperature should be kept below 85°C.
  • The LMH0040SQE/NOPB has internal ESD protection, but additional external protection may be required depending on the application. It is recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines.
