LMH0041SQ/NOPB - Texas Instruments

Description: 2.7Gbps Deserializer 2 Input 5 Output 48-WQFN (7x7)

Download LMH0041SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

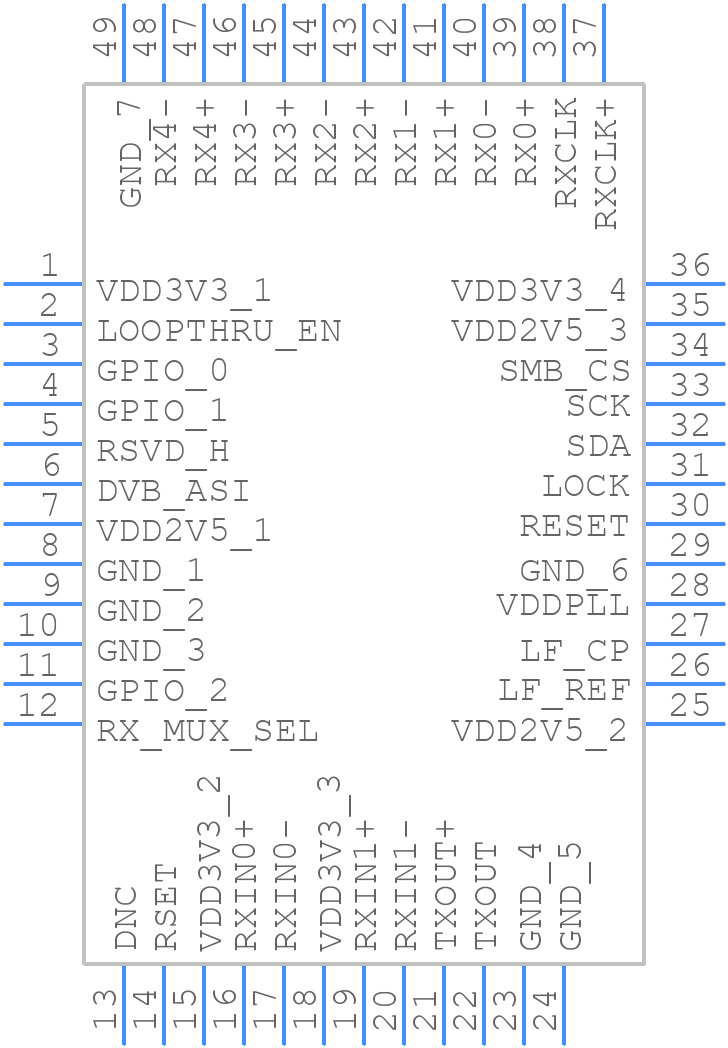

LMH0041SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0041SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A _ 2021
click to zoom
3D Models
LMH0041SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A _ 2021
click to zoom

LMH0041SQ/NOPB Details

  • Manufacturer Part Number:

    LMH0041SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LLP-48

  • Pin Count:

    48

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.4 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    6

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    127 mA

  • Supply Voltage-Max:

    2.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3.5 V

  • Supply Voltage1-Min:

    3.1 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMH0041SQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The LMH0041SQ/NOPB requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA on the VBIAS pin. It's also important to ensure that the input signal is within the recommended common-mode voltage range of 1.5V to 3.5V.
  • The LMH0041SQ/NOPB is rated for operation from -40°C to 85°C. However, it's recommended to derate the device's performance at temperatures above 70°C to ensure reliable operation.
  • The LMH0041SQ/NOPB is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Texas Instruments offers other devices that are specifically designed and qualified for these types of applications, such as the LMH0041QMLV or the LMH0041BQMLV.
  • Common issues with the LMH0041SQ/NOPB can often be attributed to poor PCB layout, inadequate biasing, or incorrect input signal conditioning. Texas Instruments recommends following the recommended application circuit and PCB layout, and using simulation tools such as SPICE or PSpice to model and analyze the circuit.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0041SQ/NOPB Overview

Use the download button to access the LMH0041SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00, or try a keyword search, such as Line Driver or Receivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
