LMH0041SQE/NOPB - Texas Instruments

Description: HD, SD, DVB-ASI SDI Deserializer with Loopthrough and LVDS Interface

Download LMH0041SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

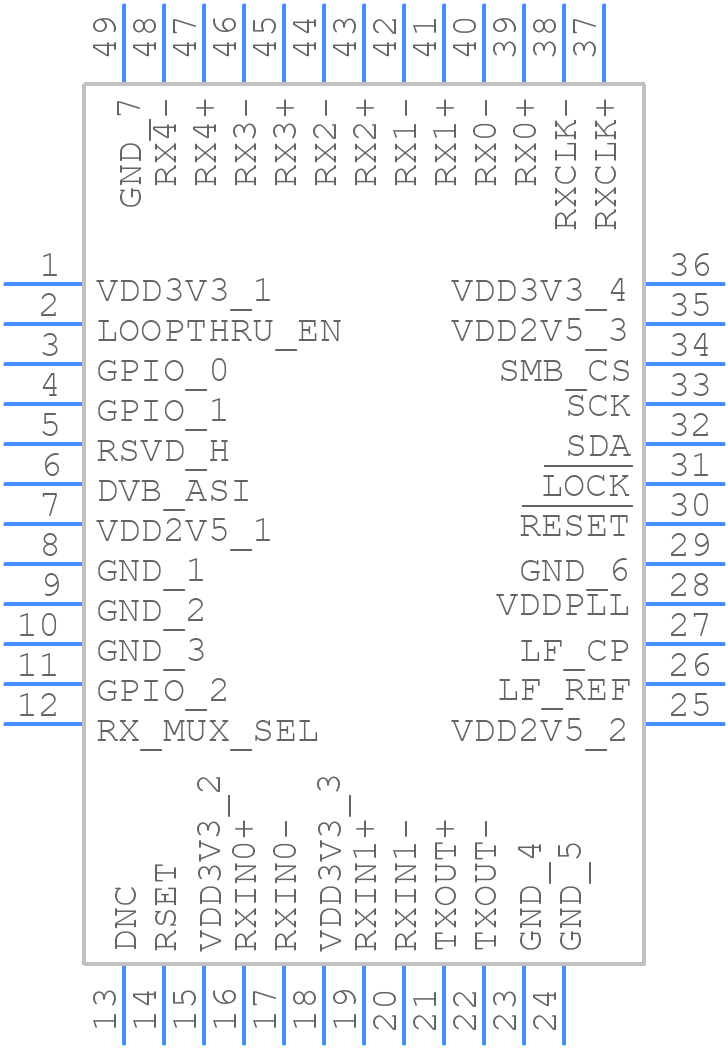

LMH0041SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0041SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
LMH0041SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

LMH0041SQE/NOPB Details

  • Manufacturer Part Number:

    LMH0041SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LLP-48

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.4 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    127 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3.465 V

  • Supply Voltage1-Min:

    3.135 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMH0041SQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0041SQE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • Proper termination of the LMH0041SQE/NOPB involves using a 50-ohm termination resistor at the output, and a 50-ohm back-termination resistor at the input. The termination resistors should be placed as close to the device as possible.
  • The maximum cable length that can be driven by the LMH0041SQE/NOPB depends on the frequency of the signal and the type of cable used. As a general rule, the maximum cable length is around 10-15 meters for a 3.3V signal and 5-7 meters for a 1.8V signal.
  • The LMH0041SQE/NOPB has a thermal pad that should be connected to a heat sink or a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
  • The recommended power sequencing for the LMH0041SQE/NOPB is to power up the VCC supply first, followed by the input signal. When powering down, the input signal should be removed first, followed by the VCC supply.
