LMH0044SQ/NOPB - Texas Instruments

Description: SMPTE 292M / 259M Adaptive Cable Equalizer

Download LMH0044SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

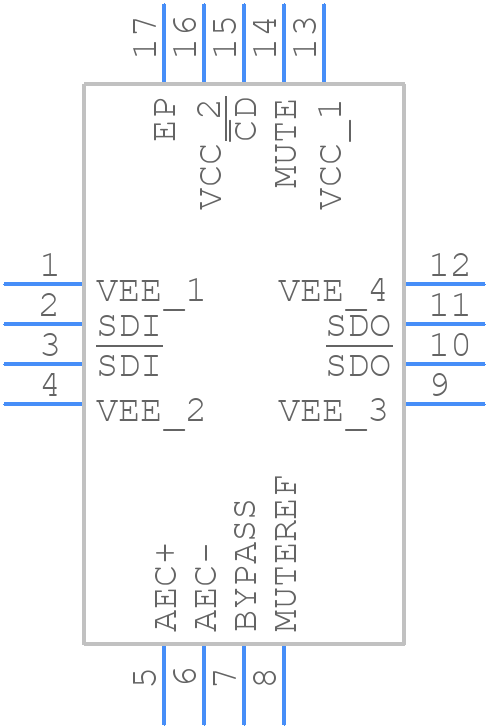

Symbol
LMH0044SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0044SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUM0016A
click to zoom
3D Models
LMH0044SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RUM0016A
click to zoom

LMH0044SQ/NOPB Details

  • Manufacturer Part Number:

    LMH0044SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1485000 Mbps

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.077 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMH0044SQ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0044SQ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The LMH0044SQ requires a single 3.3V or 5V power supply. A 0.1uF decoupling capacitor should be placed as close as possible to the device, and a 10uF bulk capacitor should be placed near the power supply. The power supply should be clean and well-regulated to ensure optimal performance.
  • The LMH0044SQ can support data rates up to 2.5 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
  • The LMH0044SQ is a highly configurable device. The configuration is done through the use of external resistors and capacitors. The device can be configured for different gain settings, output impedance, and input termination. Refer to the datasheet and application notes for specific configuration examples.
  • The LMH0044SQ is specified to operate over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 100°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0044SQ/NOPB Overview

Use the download button to access the LMH0044SQ/NOPB schematic symbol, PCB footprint, and 3D model.
