Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible to minimize parasitic inductance and capacitance. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
The LMH0056SQ requires a bias voltage of 5V to 12V, and the recommended bias current is 10mA to 20mA. It's also important to ensure that the bias voltage is well-regulated and free of noise to prevent distortion and oscillation.
The maximum power dissipation of the LMH0056SQ is 1.5W, and it's recommended to keep the junction temperature below 150°C to ensure reliable operation. Proper heat sinking and thermal management are crucial to prevent overheating.
The LMH0056SQ is rated for operation from -40°C to 125°C, but it's recommended to derate the power dissipation at high temperatures to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's essential to characterize its behavior in the target operating environment.
Oscillation or instability issues with the LMH0056SQ can be caused by poor PCB layout, inadequate biasing, or excessive noise. To troubleshoot, check the PCB layout for parasitic inductance and capacitance, ensure proper biasing, and add noise filtering or shielding as needed. Additionally, check for any signs of overheating or damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0056SQ/NOPB Overview

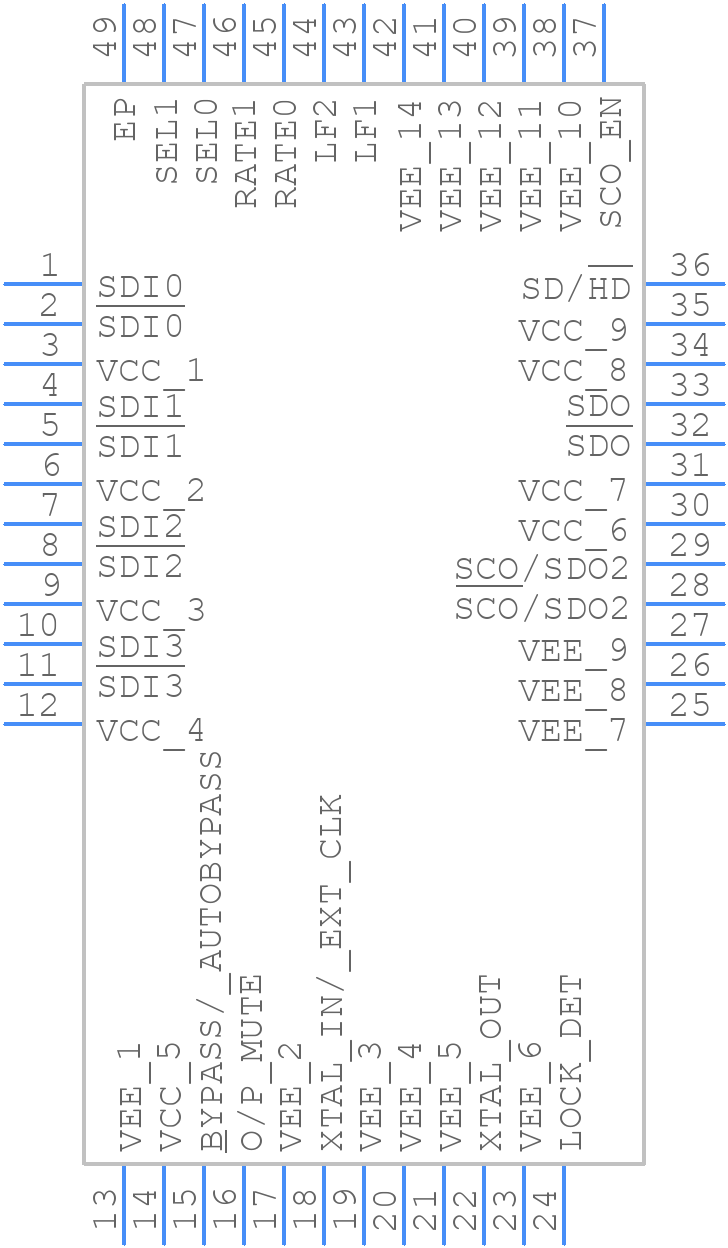

Use the download button to access the LMH0056SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
