Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
The LMH0070SQE/NOPB requires a bias voltage of 5V to 12V, and the recommended bias current is 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range to achieve optimal performance.
The maximum input power that the LMH0070SQE/NOPB can handle is +10dBm, which is equivalent to 10mW. Exceeding this power limit may cause damage to the device or affect its performance.
Common issues with the LMH0070SQE/NOPB can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying that the input and output signals are within the recommended specifications. Additionally, checking for noise and interference on the power supply and signal lines can help identify the root cause of the issue.
The LMH0070SQE/NOPB is a commercial-grade device, and its reliability and temperature range may not be suitable for high-reliability or high-temperature applications. Texas Instruments provides a range of devices with enhanced reliability and temperature range, such as the LMH0070SQE/NOPB-Q1, which may be more suitable for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0070SQE/NOPB Overview

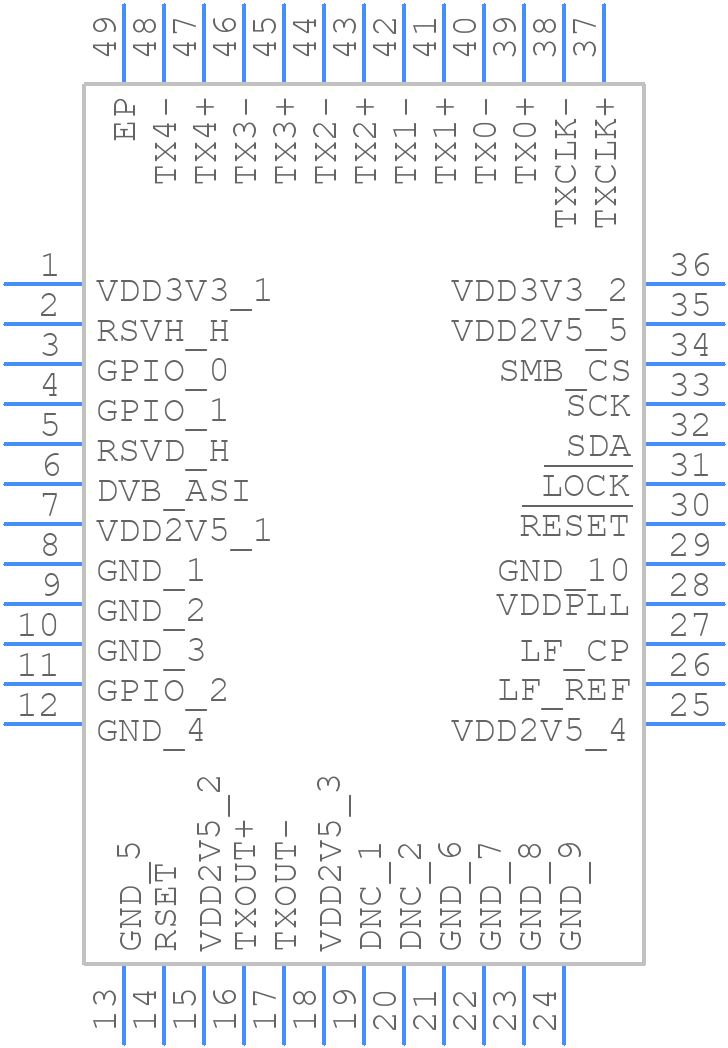

Use the download button to access the LMH0070SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Line Driver or Receivers
