A good PCB layout for the LMH0303SQE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device. Also, use a 10kΩ to 22kΩ resistor in series with the input to prevent oscillations.
The maximum cable length supported by the LMH0303SQE/NOPB depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters (330 feet) for HD-SDI and 300 meters (980 feet) for SD-SDI, but this may vary depending on the specific implementation.
To troubleshoot issues with the LMH0303SQE/NOPB, start by checking the power supply and decoupling, then verify the input signal quality and cable integrity. Use an oscilloscope to check the signal waveform and amplitude, and consult the datasheet and application notes for guidance on signal conditioning and layout considerations.
While the LMH0303SQE/NOPB is primarily designed for SDI applications, it can be used in other high-speed digital applications with proper signal conditioning and adaptation. However, it's essential to consult the datasheet and application notes to ensure the device meets the specific requirements of the target application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0303SQE/NOPB Overview

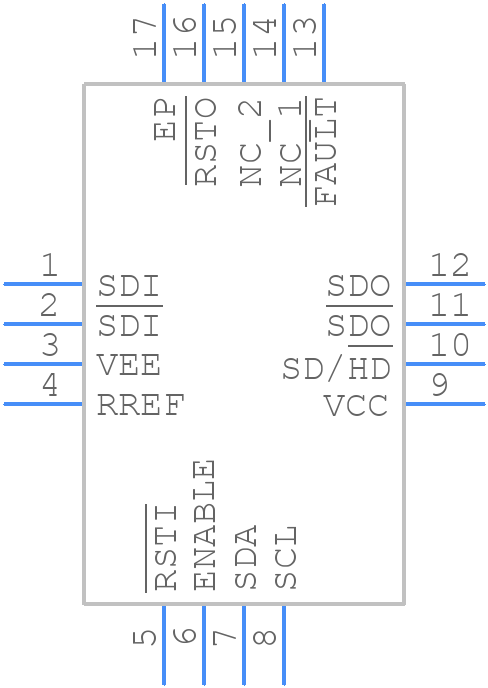

Use the download button to access the LMH0303SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
