A good PCB layout for the LMH0307SQE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The LMH0307SQE/NOPB requires a clean and stable power supply. Ensure that the power supply voltage is within the recommended range (1.8V to 3.3V), and use a low-ESR capacitor (e.g., 0.1uF) to decouple the power pins. Additionally, use a 10uF capacitor to decouple the analog and digital power pins.
The LMH0307SQE/NOPB can support clock frequencies up to 150MHz. However, the maximum clock frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for a specific design.
The LMH0307SQE/NOPB is a highly configurable device. To configure it for a specific video format, refer to the datasheet and programming guide. The device can be programmed using a serial interface, and the configuration data can be stored in an external EEPROM or flash memory.
The typical power consumption of the LMH0307SQE/NOPB varies depending on the operating frequency, output load, and other factors. However, the typical power consumption is around 250mW at 100MHz clock frequency and 1.8V power supply voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0307SQE/NOPB Overview

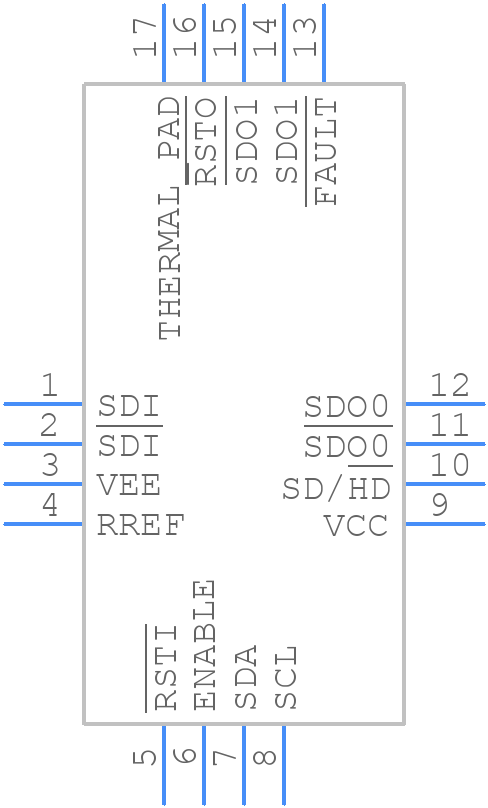

Use the download button to access the LMH0307SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Line Driver or Receivers
