A good PCB layout for the LMH0324RTWT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device. Follow the recommended power supply filtering and decoupling guidelines in the datasheet.
The maximum cable length supported by the LMH0324RTWT depends on the specific application and signal frequency. As a general guideline, TI recommends keeping cable lengths under 10 meters for optimal performance. For longer cables, consider using repeaters or active equalization.
To troubleshoot issues with the LMH0324RTWT, start by checking the power supply, PCB layout, and signal integrity. Use oscilloscopes and signal analyzers to measure signal quality and identify potential issues. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
The LMH0324RTWT is rated for operation up to 85°C. For high-temperature environments, consider using a heat sink or thermal management system to keep the device within its operating temperature range. Consult the datasheet for thermal management guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0324RTWT Overview

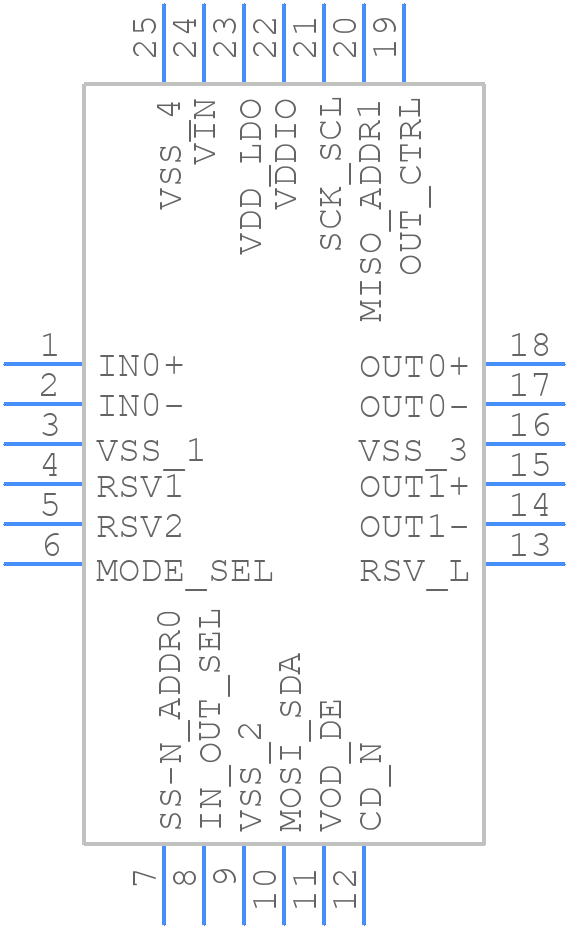

Use the download button to access the LMH0324RTWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
