A good PCB layout for the LMH0341SQE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device. Also, ensure that the power supply can provide the required current for the device and the load.
The maximum cable length for the LMH0341SQE/NOPB's output depends on the specific application and the type of cable used. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable operation.
The LMH0341SQE/NOPB is rated for operation up to 85°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking and airflow in high-temperature environments. Consult the datasheet and application notes for more information.
To troubleshoot issues with the LMH0341SQE/NOPB, start by checking the power supply, decoupling, and PCB layout. Verify that the input and output signals are within the specified ranges. Use an oscilloscope to check for signal integrity and noise. Consult the datasheet, application notes, and Texas Instruments' support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0341SQE/NOPB Overview

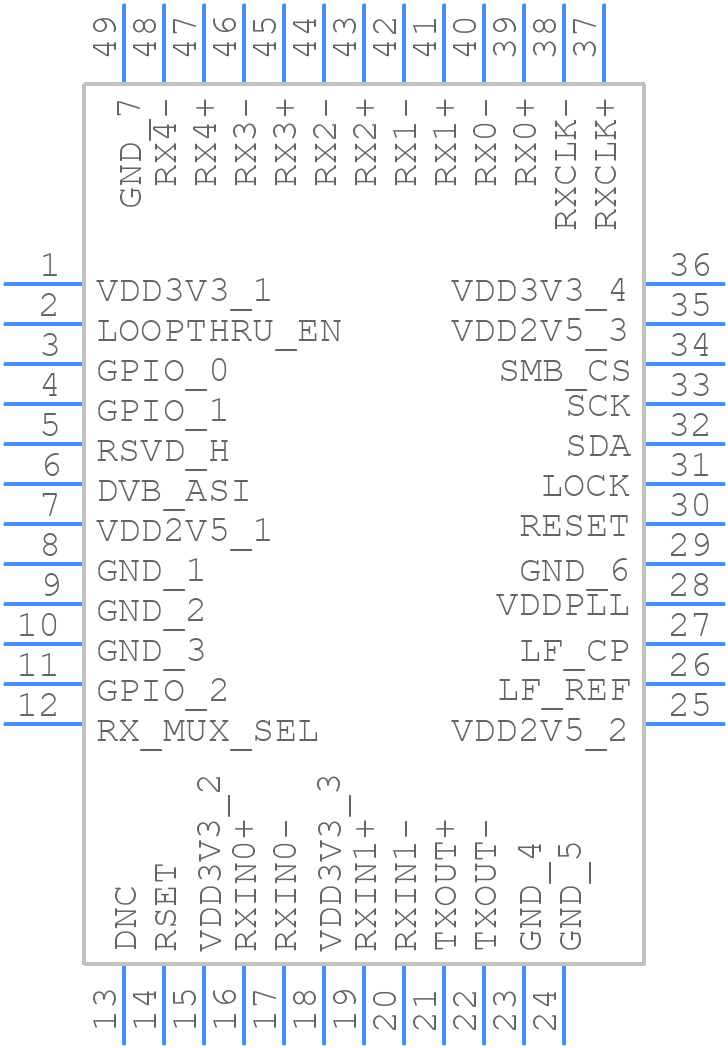

Use the download button to access the LMH0341SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
