LMH0341SQX/NOPB - Texas Instruments

Description: 串行器/解串器 - Serdes 3Gbps, HD, SD, DVB-ASI SDI Deserializer with Loopthrough and LVDS Interface 48-WQFN -40 to 85

Download LMH0341SQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

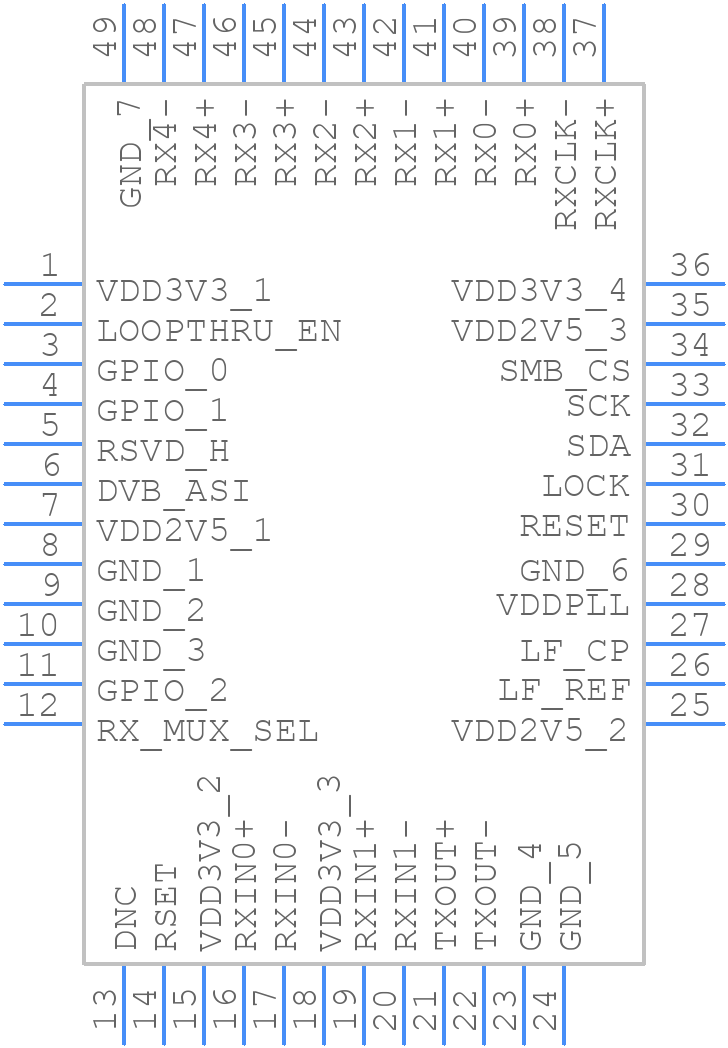

LMH0341SQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0341SQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A _ 2021
click to zoom
3D Models
LMH0341SQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A _ 2021
click to zoom

LMH0341SQX/NOPB Details

  • Manufacturer Part Number:

    LMH0341SQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LLP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.4 V

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    127 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3.465 V

  • Supply Voltage1-Min:

    3.135 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMH0341SQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
  • The LMH0341SQX/NOPB requires a bias voltage of 5V, and the recommended bias current is 10mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range to achieve optimal performance.
  • The maximum input power that the LMH0341SQX/NOPB can handle is +10dBm. Exceeding this power level may cause damage to the device or affect its performance.
  • Common issues with the LMH0341SQX/NOPB can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying that the input and output signals are within the recommended specifications. Additionally, Texas Instruments provides application notes and technical support resources to help troubleshoot and resolve issues.
  • Yes, the LMH0341SQX/NOPB is compatible with lead-free soldering processes, and Texas Instruments recommends following the JEDEC J-STD-020C standard for lead-free soldering.
