LMH0356SQE-40/NOPB - Texas Instruments

Description: 3 Gbps HD/SD SDI Reclocker with 4:1 Input Mux and FR4 EQs

Download LMH0356SQE-40/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

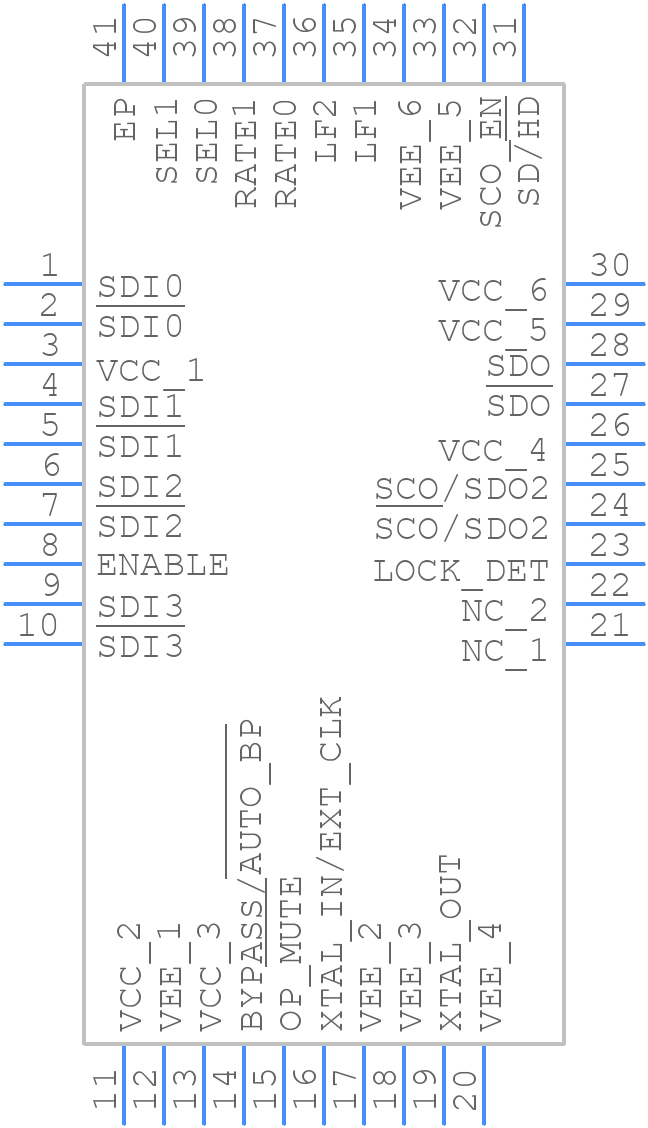

LMH0356SQE-40/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0356SQE-40/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040A
click to zoom
3D Models
LMH0356SQE-40/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040A
click to zoom

LMH0356SQE-40/NOPB Details

  • Manufacturer Part Number:

    LMH0356SQE-40/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LMH0356SQE-40/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
  • The LMH0356SQE-40/NOPB requires a single 3.3V power supply, and it's recommended to use a low-ESR capacitor (e.g., 0.1uF) for power supply decoupling. Additionally, a 10uF capacitor can be used for bulk decoupling.
  • The maximum cable length supported by the LMH0356SQE-40/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at data rates up to 3.125 Gbps.
  • The LMH0356SQE-40/NOPB is a programmable device, and the data rate can be configured using the SPI interface. The device supports data rates from 100 Mbps to 3.125 Gbps, and the specific configuration depends on the application requirements.
  • The typical power consumption of the LMH0356SQE-40/NOPB is around 250mW at 3.3V and 3.125 Gbps data rate. However, the actual power consumption may vary depending on the specific application and operating conditions.
