LMH0394SQE/NOPB - Texas Instruments

Description: 3G HD/SD SDI Low Power Extended Reach Adaptive Cable Equalizer

Download LMH0394SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

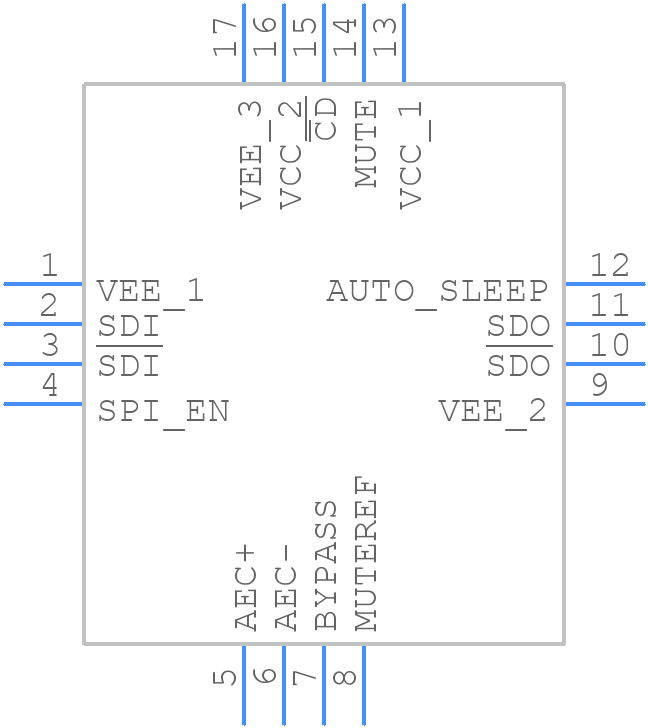

LMH0394SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0394SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUM0016A_2020
click to zoom
3D Models
LMH0394SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RUM0016A_2020
click to zoom

LMH0394SQE/NOPB Details

  • Manufacturer Part Number:

    LMH0394SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    2970000 Mbps

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.065 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMH0394SQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0394SQE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device, and consider adding a ferrite bead or inductor in series with the power supply to reduce noise.
  • The maximum cable length for the LMH0394SQE's output signals depends on the specific application and signal frequency. As a general rule, keep cable lengths as short as possible (less than 10 inches) to minimize signal degradation and noise pickup.
  • To troubleshoot issues with the LMH0394SQE, start by verifying the power supply and decoupling, then check the input signals and clock frequencies. Use an oscilloscope to inspect the output signals and verify they meet the expected specifications.
  • The LMH0394SQE is rated for operation up to 85°C. For high-temperature environments, consider using a heat sink or thermal management system to keep the device within its operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0394SQE/NOPB Overview

Use the download button to access the LMH0394SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03, or try a keyword search, such as Analog Transmission Interfaces
