A good PCB layout for the LMH0397RTVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the input and output traces away from each other can help minimize EMI and noise.
To optimize the LMH0397RTVR for low power consumption, use the lowest possible clock frequency, disable the clock when not in use, and use the power-down mode when the device is not in operation. Additionally, using a low-dropout regulator and minimizing the voltage supply can also help reduce power consumption.
The maximum cable length supported by the LMH0397RTVR depends on the specific application and the type of cable used. However, as a general rule, the device can support cable lengths of up to 100 meters at a data rate of 3 Gbps. It's recommended to use a cable with a characteristic impedance of 75 ohms and to follow proper termination and shielding techniques to minimize signal degradation.
Yes, the LMH0397RTVR can be used in a multi-channel configuration. The device has a built-in channel bonding feature that allows it to support up to 4 channels. This feature can be enabled by setting the appropriate register bits and using an external clock source. However, it's recommended to consult the datasheet and application notes for specific guidance on implementing multi-channel configurations.
The recommended thermal management strategy for the LMH0397RTVR involves using a heat sink with a thermal resistance of less than 10°C/W. The device should be mounted on a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. Additionally, using a thermal interface material and ensuring good airflow around the device can help keep the junction temperature within the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0397RTVR Overview

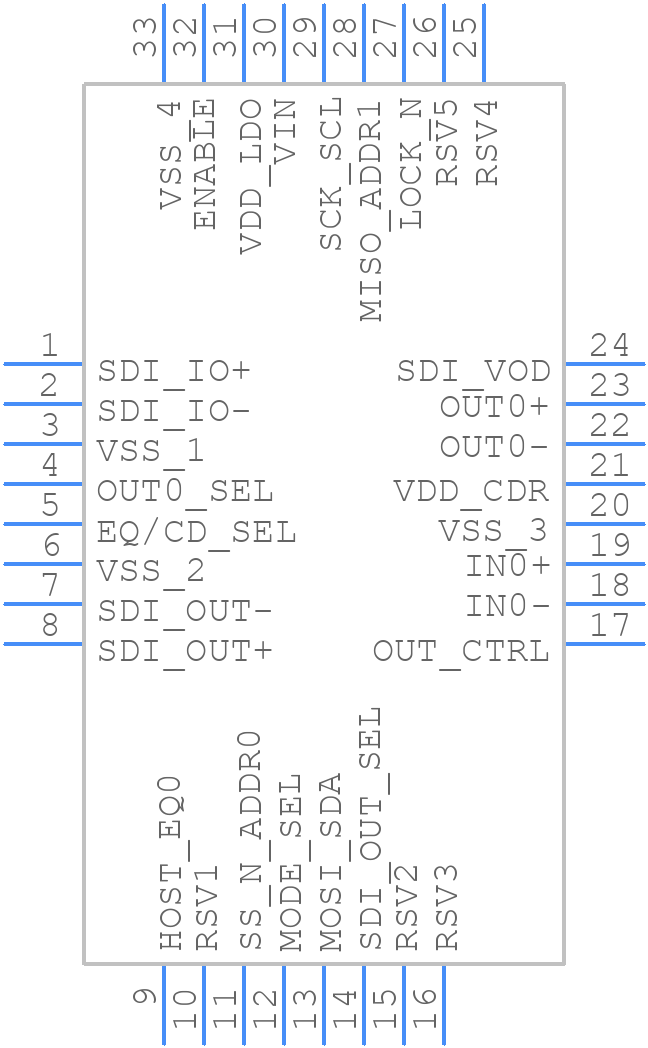

Use the download button to access the LMH0397RTVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Other Interface ICs
