CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max:
2.625 V
Supply Voltage-Min:
2.375 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
LMH1218RTWR Frequently Asked Questions (FAQs)
A good PCB layout for the LMH1218RTWR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, a small series resistor (e.g., 1-2 ohms) can be added between the output and the capacitor to improve stability.
The LMH1218RTWR can handle input voltages up to 12V, but it's recommended to keep the input voltage below 10V to ensure reliable operation and to prevent overheating.
The LMH1218RTWR is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to prevent overheating and ensure reliable operation.
To troubleshoot issues with the LMH1218RTWR, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, try replacing the device or checking for soldering or assembly issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1218RTWR Overview

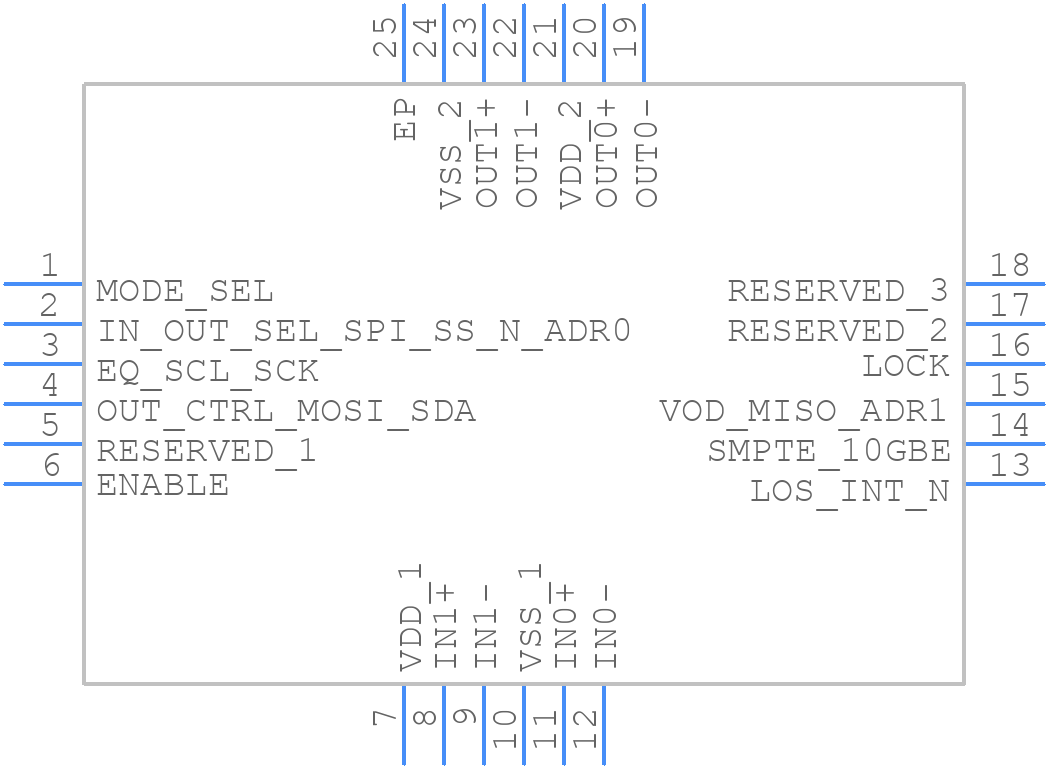

Use the download button to access the LMH1218RTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Line Driver or Receivers
