A good PCB layout for the LMH1219RTWT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a larger capacitor (e.g., 10 μF) between VCC and GND for bulk decoupling. Place these capacitors close to the device and use a low-inductance path to the power supply.
The LMH1219RTWT can handle clock frequencies up to 1.5 GHz, but the maximum frequency depends on the specific application and signal quality. It's essential to consult the datasheet and application notes for specific guidance on clock frequency limitations.
To minimize power consumption, use the lowest possible supply voltage (1.8 V), reduce the clock frequency, and use the device's power-down mode when not in use. Additionally, optimize the PCB layout to minimize power consumption and use low-power components.
The LMH1219RTWT has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and avoid overheating by keeping the device away from heat sources and using a low-power design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1219RTWT Overview

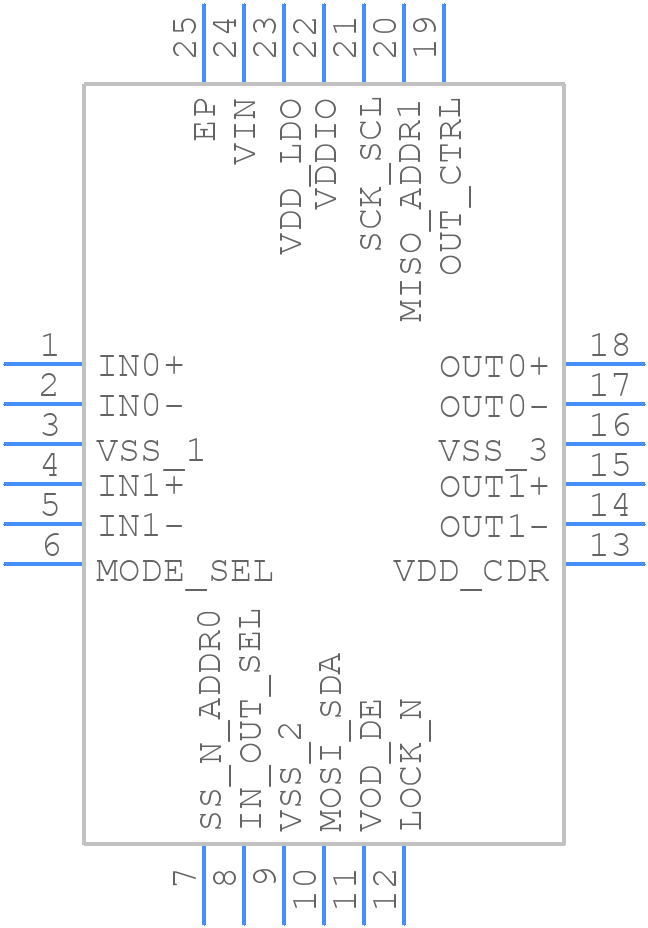

Use the download button to access the LMH1219RTWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Analog Transmission Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
