Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
The LMH1226RTWR requires a bias voltage of 5V on the VCC pin, and the input signal should be AC-coupled to the VIN pin. Additionally, the output signal should be terminated with a 50-ohm load to ensure proper impedance matching.
The maximum input signal amplitude that the LMH1226RTWR can handle is 2Vpp differential, but it's recommended to limit the input signal to 1.5Vpp differential to ensure optimal performance and prevent damage to the device.
The power consumption of the LMH1226RTWR can be reduced by reducing the supply voltage, reducing the input signal amplitude, or by using the device's power-down mode. However, reducing the supply voltage may affect the device's performance and bandwidth.
The typical rise and fall time of the LMH1226RTWR's output signal is around 100ps, but this can vary depending on the input signal frequency, amplitude, and the output load.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1226RTWR Overview

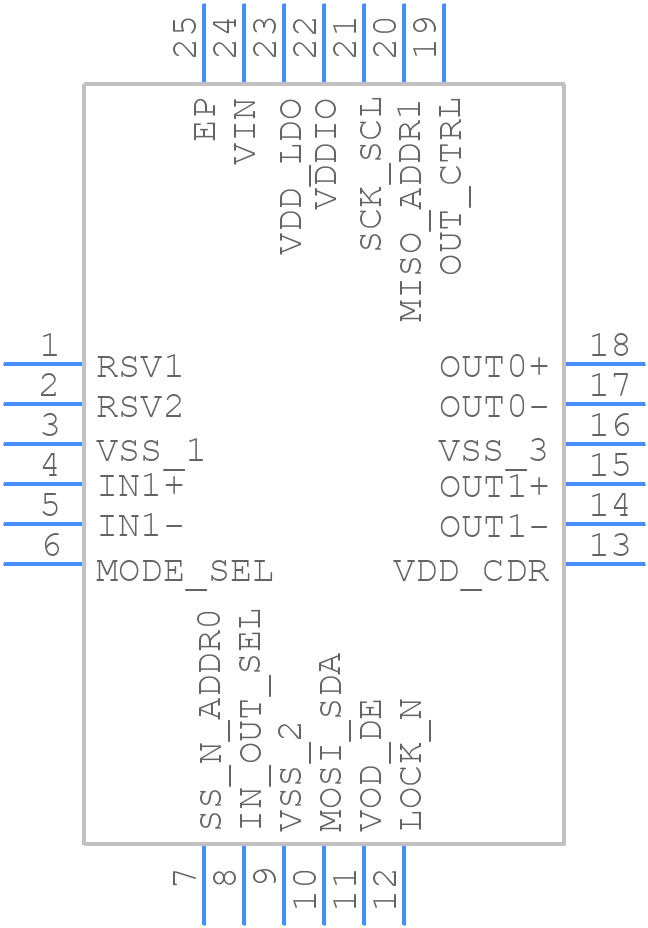

Use the download button to access the LMH1226RTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Other Consumer ICs
