A good PCB layout for the LMH1228RTVT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
The LMH1228RTVT requires a single 3.3V or 5V power supply. Ensure proper decoupling by placing a 0.1uF ceramic capacitor between the power pin and ground, and a 10uF electrolytic capacitor in parallel. Place these capacitors close to the device to minimize inductance.
The maximum cable length for the LMH1228RTVT's output depends on the specific application and signal frequency. As a general rule, keep cable lengths under 10 inches (25 cm) to minimize signal degradation. For longer cables, consider using a signal repeater or a cable with built-in signal conditioning.
To troubleshoot issues with the LMH1228RTVT's output signal, check the input signal quality, ensure proper power supply and decoupling, and verify the output is not overloaded. Use an oscilloscope to inspect the output signal and look for signs of distortion, ringing, or attenuation.
The LMH1228RTVT is rated for operation up to 85°C. For high-temperature environments, consider using a heat sink or a thermally-enhanced package. Ensure proper thermal design and follow TI's thermal management guidelines to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1228RTVT Overview

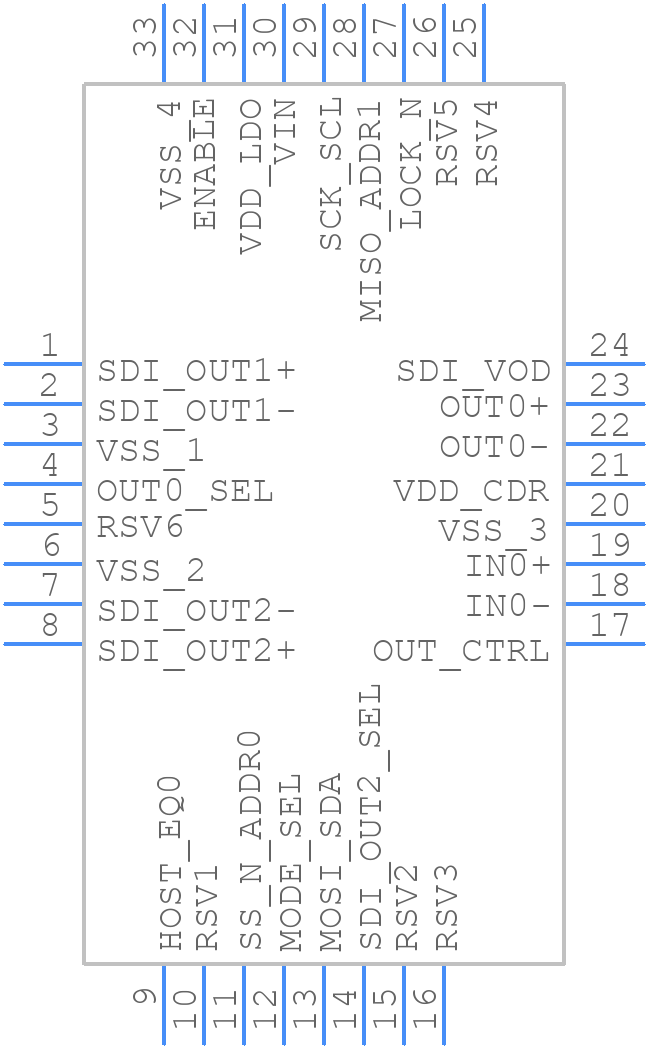

Use the download button to access the LMH1228RTVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
