A good PCB layout for the LMH1297RTVT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize power supply decoupling, use a combination of ceramic and electrolytic capacitors with different values (e.g., 0.1uF, 1uF, and 10uF) placed close to the device. This will help to filter out high-frequency noise and ensure stable operation.
The recommended clock frequency for the LMH1297RTVT is between 25MHz to 100MHz. However, the device can operate at frequencies up to 200MHz, but with reduced performance and increased power consumption.
The LMH1297RTVT can be configured for different video formats by programming the device's registers. The specific configuration will depend on the desired video format, such as HD, SD, or 3G-SDI. Refer to the datasheet and application notes for more information.
The maximum cable length supported by the LMH1297RTVT depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 100 meters for HD-SDI and 50 meters for 3G-SDI, but this may vary depending on the specific implementation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1297RTVT Overview

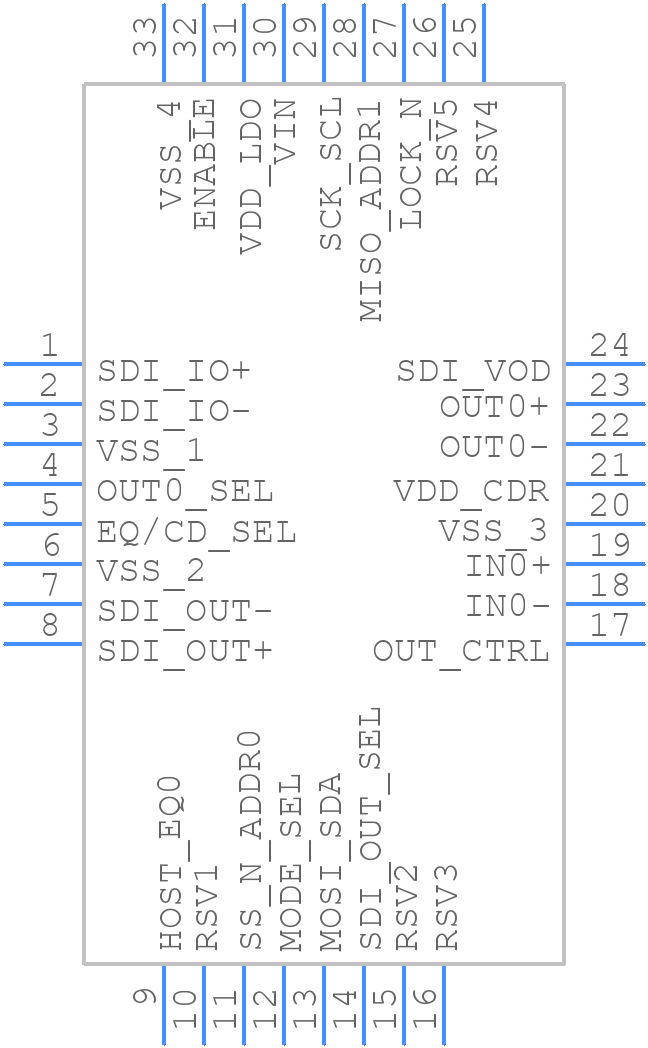

Use the download button to access the LMH1297RTVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
