LMH1982SQ/NOPB - Texas Instruments

Description: Clock Generator 0C to 70C 32-Pin WQFN EP T/R

Download LMH1982SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

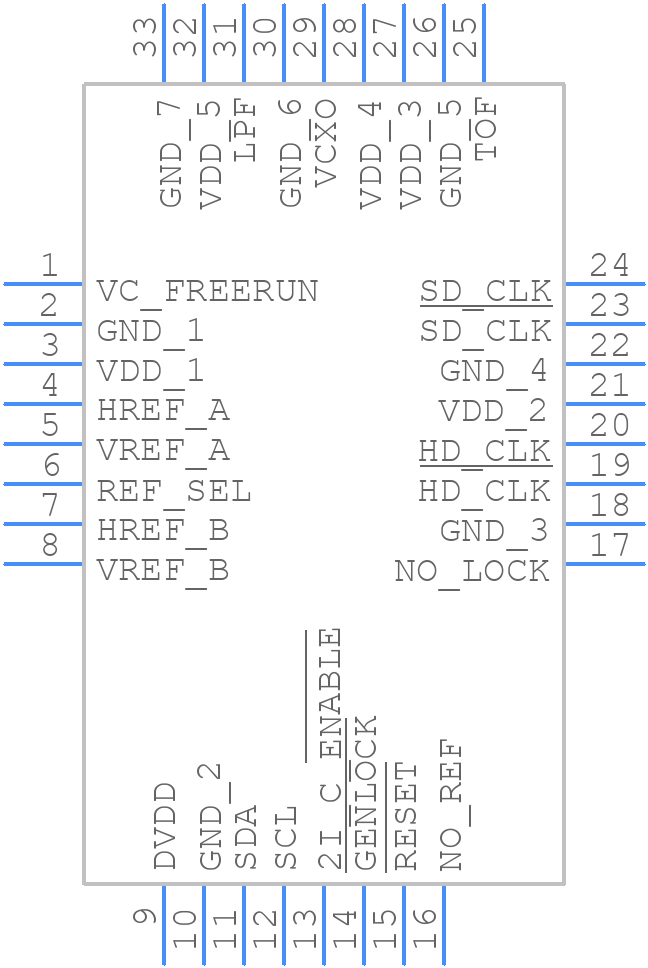

Symbol
LMH1982SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH1982SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV0032A 2021
click to zoom
3D Models
LMH1982SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTV0032A 2021
click to zoom

LMH1982SQ/NOPB Details

  • Manufacturer Part Number:

    LMH1982SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LCC-32

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 2.5V SUPPLY

  • Family:

    1982

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    70 mA

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    148.5 MHz

LMH1982SQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to keep the signal traces as short as possible.
  • The LMH1982SQ/NOPB has a specific power-up and power-down sequence requirement. The VCC pin should be powered up before the AVCC pin, and the AVCC pin should be powered down before the VCC pin. Additionally, the power supply should be ramped up and down slowly to prevent damage to the device.
  • The maximum clock frequency that can be used with the LMH1982SQ/NOPB is 100 MHz. However, the actual clock frequency that can be used may be limited by the specific application and the quality of the clock signal.
  • The LMH1982SQ/NOPB has a maximum junction temperature of 150°C. To handle thermal dissipation, it's recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. Additionally, the device should be operated within the recommended operating temperature range to prevent overheating.
  • The recommended input impedance for the LMH1982SQ/NOPB is 75 ohms. This is to ensure that the device can properly drive the input signal and to prevent signal reflections.
