Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
The LMH2832IRHAT requires a bias voltage of 5V on the VCC pin, and the input signal should be AC-coupled to the VIN pin. Additionally, the output signal should be terminated with a 50-ohm load to ensure optimal performance.
The maximum input signal amplitude that the LMH2832IRHAT can handle is 2Vpp differential, but it's recommended to limit the input signal amplitude to 1.5Vpp differential to ensure optimal performance and prevent damage to the device.
To reduce noise and jitter in the output signal, it's recommended to use a low-noise power supply, minimize the length of the output signal traces, and use a low-jitter clock source. Additionally, the use of a output filter or a clock conditioner can help to further reduce noise and jitter.
The thermal derating of the LMH2832IRHAT is 13.3 mW/°C, which means that the device's power dissipation should be reduced by 13.3 mW for every degree Celsius above the maximum operating temperature of 85°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH2832IRHAT Overview

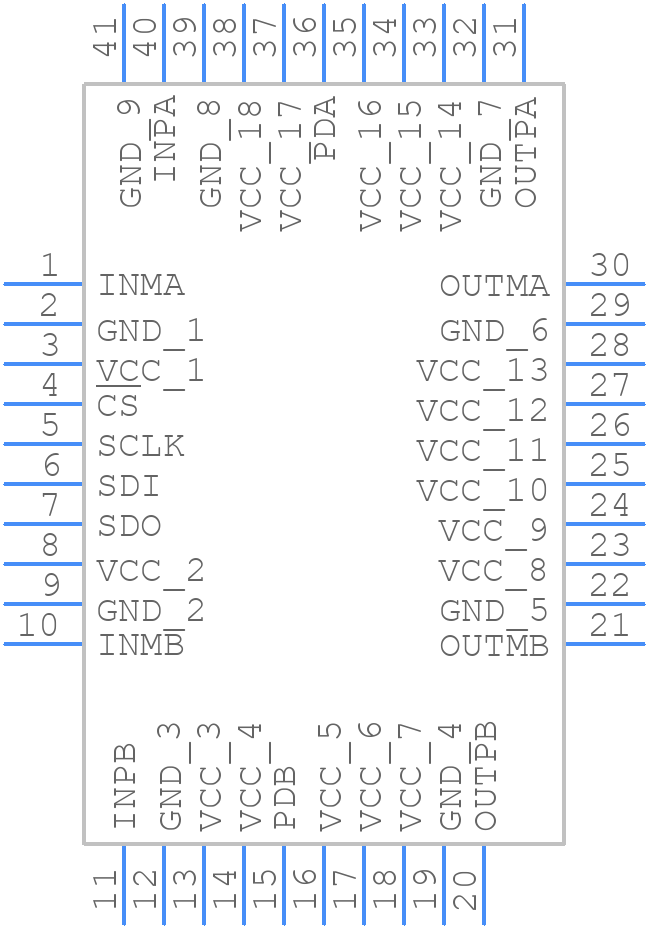

Use the download button to access the LMH2832IRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH28,
or try a keyword search, such as RF/Microwave Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
