- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LMH6321TS
- Part Number LMH6321TS
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other

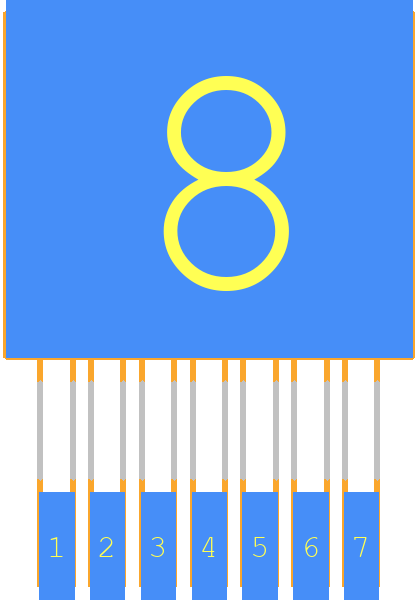

- Footprint Name Other - TO127P1435X457-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMH6321TS Details
-
Manufacturer Part Number:
LMH6321TS
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
D2PAK
-
Package Description:
TO-263, 7 PIN
-
Pin Count:
4
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
BUFFER
LMH6321TS Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The choice of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
-
The LMH6321TS has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
-
Yes, the LMH6321TS is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
-
TI provides a troubleshooting guide in the application note SLVAE05, which covers common issues and their solutions, including oscillation, instability, and output voltage errors. It's essential to follow proper design and layout guidelines to prevent these issues.
Trust Checks
System Verified
LMH6321TS Overview

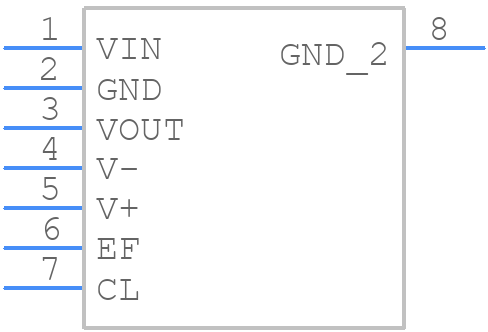

Use the download button to access the LMH6321TS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH63,
or try a keyword search, such as Buffer Amplifiers
