A good PCB layout for the LMH6401 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The choice of output filter depends on the specific requirements of your application. TI provides guidance on selecting the right filter components in the datasheet and application notes. Consider factors such as cutoff frequency, attenuation, and impedance matching.
The maximum power dissipation of the LMH6401 is dependent on the ambient temperature and the thermal resistance of the package. Ensure proper heat sinking, use a thermal pad, and follow the thermal design guidelines in the datasheet to prevent overheating.
Yes, the LMH6401 can be used in a differential output configuration. However, this requires careful attention to layout and impedance matching to maintain common-mode rejection. TI provides guidance on differential output configurations in the application notes.
Common issues with the LMH6401 can often be traced back to poor PCB layout, inadequate decoupling, or incorrect component selection. Consult the datasheet and application notes for troubleshooting guidelines, and consider using simulation tools to identify and fix issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6401IRMZT Overview

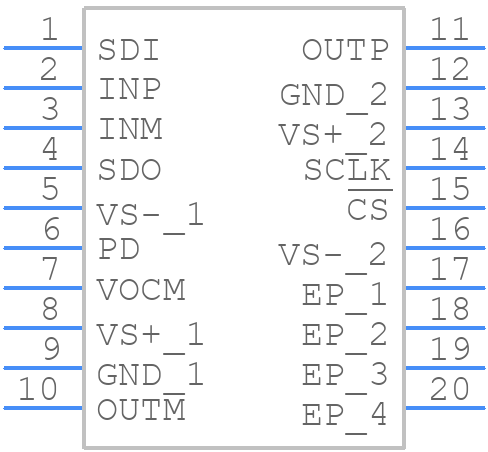

Use the download button to access the LMH6401IRMZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH64,
or try a keyword search, such as Other Consumer ICs
