LMH6517SQ/NOPB - Texas Instruments

Description: Low Power, Low Noise IF and Baseband Dual 16 bit ADC Driver With Digitally Controlled Gain

Download LMH6517SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

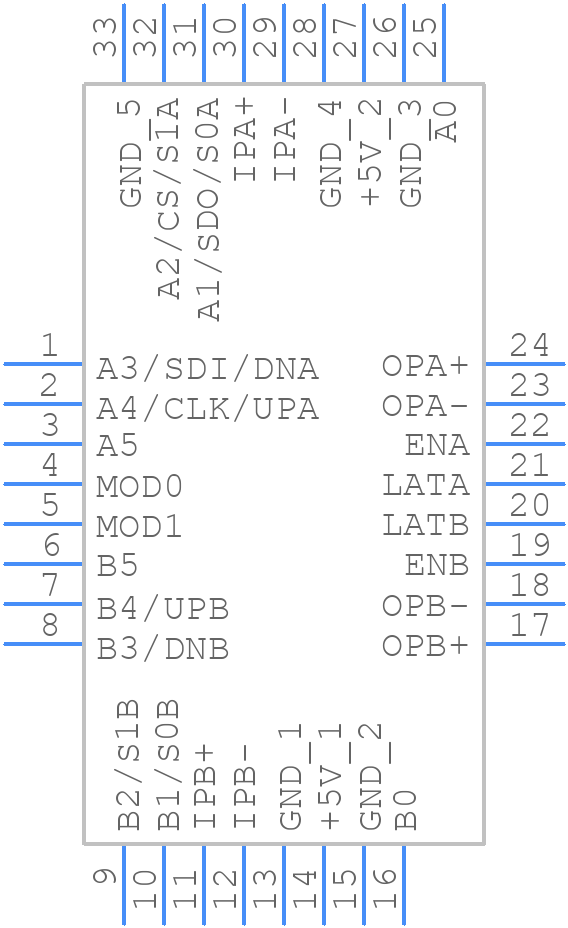

LMH6517SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH6517SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV0032A-
click to zoom
3D Models
LMH6517SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTV0032A-
click to zoom

LMH6517SQ/NOPB Details

  • Manufacturer Part Number:

    LMH6517SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LMH6517SQ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH6517SQ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output can help dampen oscillations.
  • The LMH6517SQ can handle input voltages up to 12V, but it's recommended to keep the input voltage below 10V to ensure reliable operation and to prevent overheating.
  • The LMH6517SQ is rated for operation up to 85°C, but it's recommended to derate the output current and voltage at higher temperatures to prevent overheating. A heat sink may be required for high-temperature applications.
  • To troubleshoot issues, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting tips.
