A good PCB layout for the LMH6555SQ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The output filter components (Rf, Cf, and Lf) should be chosen based on the desired cutoff frequency, output impedance, and signal attenuation requirements. A good starting point is to use the recommended values in the datasheet and then adjust them based on the specific application requirements.
The maximum power dissipation of the LMH6555SQ is 1.4W. To ensure it doesn't overheat, use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow around the device. Also, keep the device away from other heat sources and ensure that the PCB is designed to dissipate heat efficiently.
Yes, the LMH6555SQ can be used as a voltage-controlled amplifier by applying a control voltage to the Vgain pin. The gain of the amplifier will vary linearly with the control voltage. However, the control voltage range and gain variation will depend on the specific application and requirements.
To ensure EMC with the LMH6555SQ, use a shielded enclosure, keep the device away from other noise sources, and use a common-mode choke or ferrite bead on the input and output lines. Also, ensure that the PCB is designed to minimize electromagnetic radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6555SQ/NOPB Overview

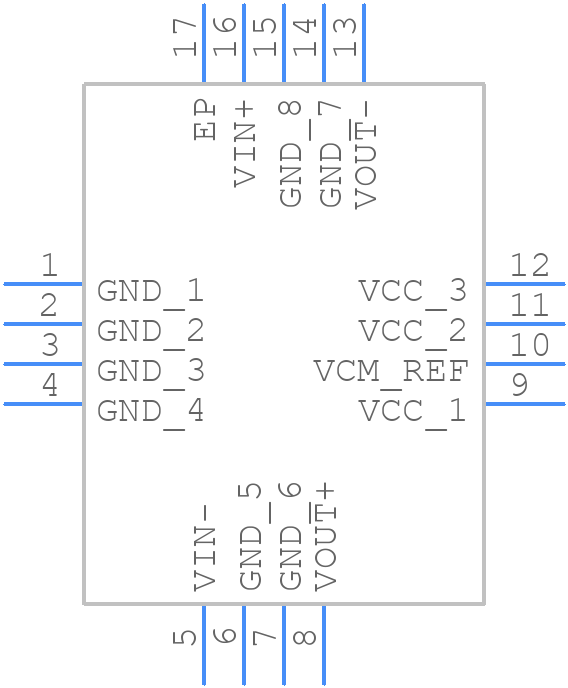

Use the download button to access the LMH6555SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Line Driver or Receivers
