A good PCB layout for the LMH6572MQ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure stability, make sure to follow the recommended component values and PCB layout, and add a compensation capacitor (Ccomp) between pins 1 and 8. The value of Ccomp depends on the specific application and can be calculated using TI's stability calculator tool.
The maximum power dissipation of the LMH6572MQ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated based on the actual operating conditions.
While the LMH6572MQ is primarily a high-speed amplifier, it can be used as a voltage regulator in certain applications. However, it's essential to ensure the device is operated within its specified voltage and current limits, and that the output is properly filtered to prevent oscillations.
To protect the LMH6572MQ from ESD and overvoltage, use ESD protection diodes and TVS diodes on the input and output pins. Additionally, ensure that the device is operated within its specified voltage and current limits, and that the PCB layout is designed to minimize ESD susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6572MQ/NOPB Overview

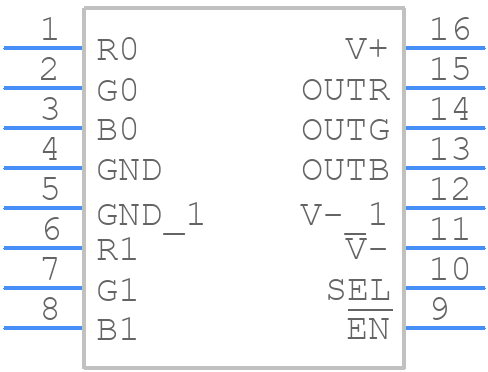

Use the download button to access the LMH6572MQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
