FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
130 mA
Supply Voltage-Max (Vsup):
2.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switching:
BREAK-BEFORE-MAKE
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
LMH6583YA/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLWA043, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The LMH6583YA requires a specific biasing scheme to achieve optimal linearity and gain. The recommended biasing circuit is shown in the datasheet, and it's essential to follow the recommended values for resistors and capacitors to ensure proper biasing.
The LMH6583YA is rated for operation from -40°C to 85°C, but it's essential to consider the derating of the device's performance at higher temperatures. The datasheet provides thermal derating curves to help designers estimate the device's performance at elevated temperatures.
Texas Instruments provides an application note, SLWA044, that provides troubleshooting guidelines for common issues with the LMH6583YA, including oscillations, instability, and noise. The note also provides tips for optimizing the device's performance and minimizing errors.
The LMH6583YA is a sensitive device that requires proper ESD protection to prevent damage. Texas Instruments recommends following the ESD protection guidelines outlined in the datasheet, including the use of ESD-sensitive handling and storage procedures, and incorporating ESD protection devices in the circuit design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6583YA/NOPB Overview

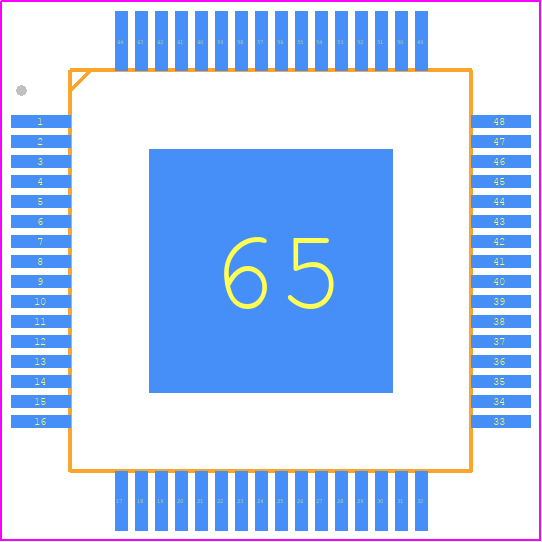

Use the download button to access the LMH6583YA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Multiplexers or Switches
