A good PCB layout for the LMH6629SD/NOPB involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of output filter components depends on the specific application requirements. A good starting point is to use a 2nd-order LC filter with a cutoff frequency of around 100 MHz. The values of the inductor and capacitor can be calculated using the datasheet's recommended values and the desired cutoff frequency.
The maximum power dissipation of the LMH6629SD/NOPB is around 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
Yes, the LMH6629SD/NOPB can be used as a voltage-controlled amplifier. This can be achieved by applying a control voltage to the Vgain pin, which controls the gain of the amplifier. The gain can be varied from 0 dB to 26 dB, depending on the application requirements.
The recommended input impedance for the LMH6629SD/NOPB is around 50 ohms. A mismatch in input impedance can affect the amplifier's performance, leading to reduced gain, increased noise, and distortion. It's recommended to use an input impedance matching network to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6629SD/NOPB Overview

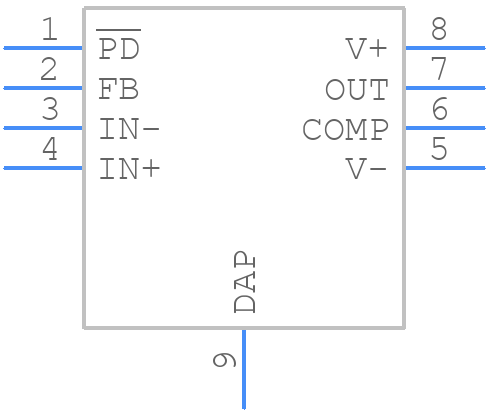

Use the download button to access the LMH6629SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH66,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
