Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The feedback resistors (Rf and Rg) determine the gain of the amplifier. The recommended values are provided in the datasheet, but the optimal values may vary depending on the specific application. A good starting point is to use the values recommended in the datasheet and then adjust them based on the desired gain and bandwidth requirements.
The maximum power dissipation of the LMH6629 is not explicitly stated in the datasheet, but it can be calculated based on the maximum junction temperature (TJ) and the thermal resistance (θJA). The maximum power dissipation can be calculated as Pd = (TJ - TA) / θJA, where TA is the ambient temperature.
Yes, the LMH6629 can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this will reduce the common-mode rejection ratio (CMRR) and may affect the overall performance of the amplifier.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, such as using a low-ESR capacitor for the power supply bypass, minimizing parasitic capacitance, and using a stable voltage reference. Additionally, the LMH6629 has a built-in compensation network, but it may be necessary to add additional compensation components depending on the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6629SDX/NOPB Overview

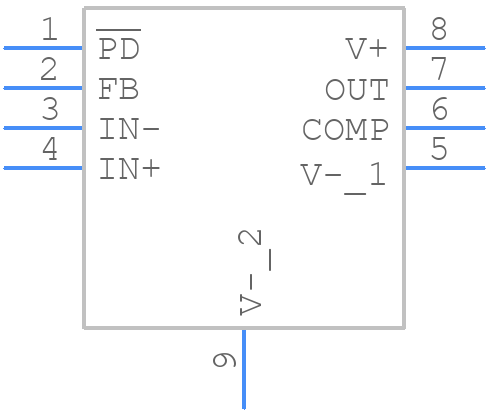

Use the download button to access the LMH6629SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH66,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
