A good PCB layout for the LMH6714MAX/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedances are matched, and the device is operated within its recommended operating conditions. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
The maximum power dissipation of the LMH6714MAX/NOPB is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation is typically around 1.4W.
The LMH6714MAX/NOPB is rated for operation up to 85°C, but it can be used in high-temperature environments with some derating. However, the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
To troubleshoot common issues with the LMH6714MAX/NOPB, start by checking the PCB layout and component values against the recommended values. Ensure that the input and output impedances are matched, and the device is operated within its recommended operating conditions. Use an oscilloscope to check for oscillations or instability, and consider adding decoupling capacitors or a small capacitor between the output and ground to improve stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6714MAX/NOPB Overview

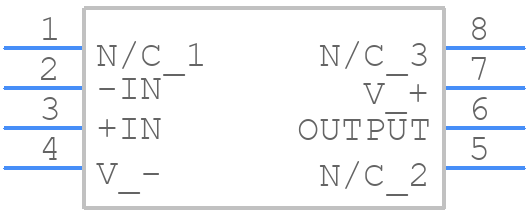

Use the download button to access the LMH6714MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
