Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with low ESR (Equivalent Series Resistance) are recommended. The datasheet provides some guidance, but it's also important to consider factors such as voltage rating, temperature range, and physical size.
The maximum power dissipation of the LMH6722MA is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a thermal resistance value, and engineers can use this to calculate the maximum power dissipation. To ensure the device doesn't overheat, it's important to provide adequate heat sinking, such as a thermal pad or heat sink, and to ensure good airflow around the device.
Troubleshooting issues with the LMH6722MA often requires a systematic approach. Engineers should start by checking the power supply, input and output signals, and PCB layout for any errors or anomalies. They should also verify that the device is operated within its recommended specifications and that the input and output capacitors are properly selected. If the issue persists, engineers can use tools such as oscilloscopes or spectrum analyzers to analyze the signals and identify the root cause of the problem.
Yes, the LMH6722MA can be used in a differential amplifier configuration. To do so, engineers need to connect the inputs and outputs in a differential configuration, using resistors to set the gain and common-mode voltage. The datasheet provides some guidance on differential amplifier configurations, but engineers should also consult application notes and other resources for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6722MA Overview

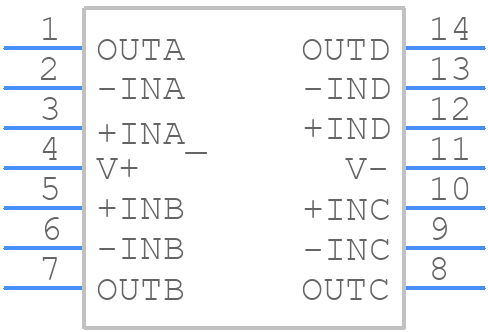

Use the download button to access the LMH6722MA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
