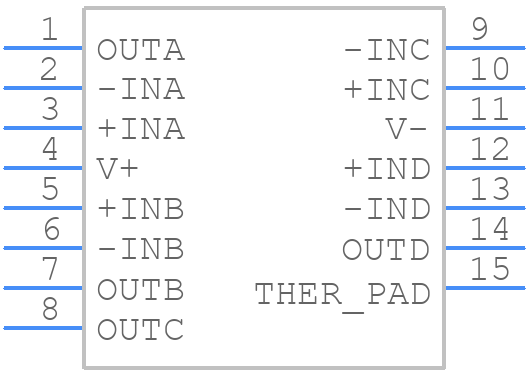

LMH6722QSD - Texas Instruments

LMH6722QSD Details

• Manufacturer Part Number:

  LMH6722QSD

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  LLP-14

• Pin Count:

  14

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e0

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  14

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  3 mm
