Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The feedback resistors (Rf and Rg) determine the gain of the amplifier. The recommended values can be calculated using the formulae provided in the datasheet, taking into account the desired gain, input impedance, and output impedance. TI also provides a calculator tool to help with the calculation.
The maximum power dissipation of the LMH6738MQ is dependent on the package type and thermal resistance. The datasheet provides a thermal resistance value (θJA) of 45°C/W for the QFN package. To ensure the device doesn't overheat, it's essential to provide adequate heat sinking, such as a copper plane or a heat sink, and to calculate the maximum power dissipation based on the operating conditions.
Yes, the LMH6738MQ can be used as a single-ended amplifier. To configure it as a single-ended amplifier, connect the negative input (IN-) to ground, and use the positive input (IN+) as the signal input. The output will be single-ended, and the gain will be half of the differential gain.
To ensure stability, it's essential to follow the recommended layout guidelines, use the correct values for the feedback resistors, and ensure the input and output impedances are matched. Additionally, the datasheet provides a stability analysis section that helps to identify potential stability issues and provides guidance on how to mitigate them.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6738MQ/NOPB Overview

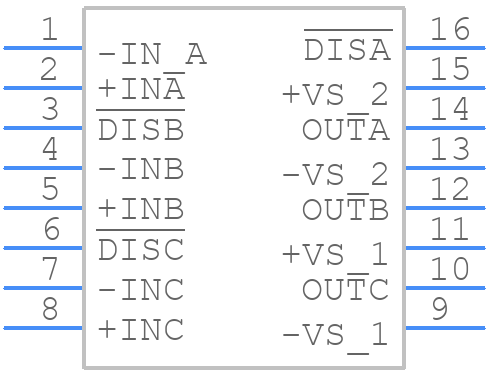

Use the download button to access the LMH6738MQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
