A good PCB layout for the LMH6881SQ/NOPB involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific requirements of your application. It's also important to consider the tolerance and temperature coefficient of the resistors.
The maximum power dissipation of the LMH6881SQ/NOPB is 1.4W. To ensure you don't exceed it, calculate the power dissipation based on the output current and voltage, and make sure to provide adequate heat sinking and thermal management. You can also use the thermal resistance (θJA) specified in the datasheet to estimate the junction temperature.
To filter out high-frequency noise and oscillations, you can use a combination of bypass capacitors, series resistors, and ferrite beads. Additionally, make sure to use a stable and low-noise power supply, and consider using a common-mode filter or a differential filter to reject common-mode noise.
The recommended input termination for the LMH6881SQ/NOPB is a 50Ω resistor to match the input impedance of the device. For the output, a 50Ω back-termination resistor is recommended to minimize reflections and ensure a clean signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6881SQ/NOPB Overview

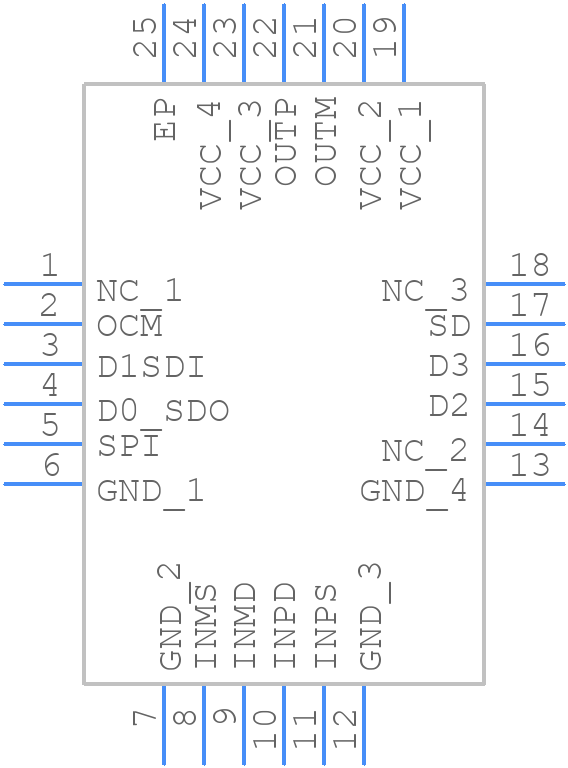

Use the download button to access the LMH6881SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
