LMH7324SQX/NOPB - Texas Instruments

Description: Analog Comparators Quad 700 ps High Speed Comparator with RSPECL Outputs 32-WQFN -40 to 85

Download LMH7324SQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

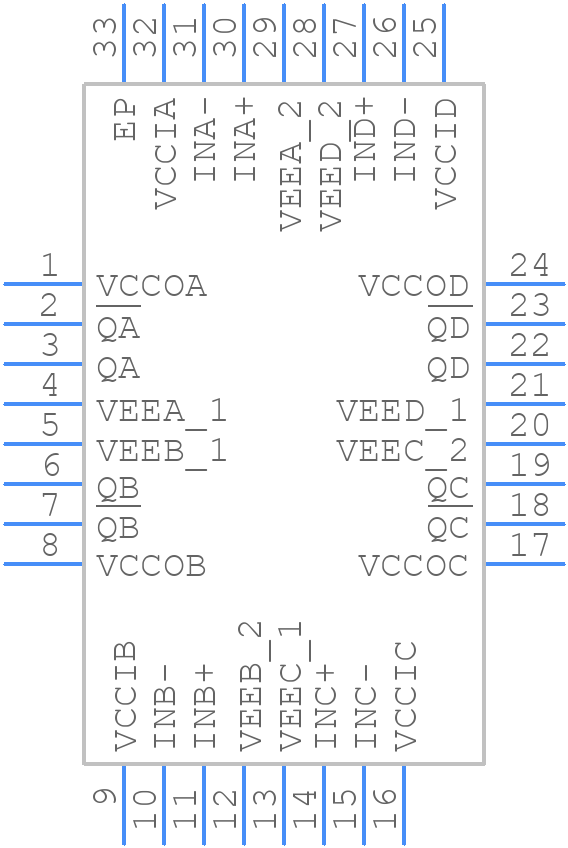

LMH7324SQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH7324SQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV0032A 2021
click to zoom
3D Models
LMH7324SQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTV0032A 2021
click to zoom

LMH7324SQX/NOPB Details

  • Manufacturer Part Number:

    LMH7324SQX/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    WQFN-32

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    9500 µV

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.7 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LMH7324SQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • The LMH7324SQX/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the bias voltage is within the recommended range (typically 3.3V to 5V) and that the bias current is limited to the recommended maximum value (typically 10mA).
  • The LMH7324SQX/NOPB has an operating temperature range of -40°C to 125°C, but it's recommended to operate within a narrower range (typically -20°C to 85°C) for optimal performance and reliability.
  • The LMH7324SQX/NOPB has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected environment.
  • The recommended power sequencing for the LMH7324SQX/NOPB is to apply the power supply voltage (VCC) before applying the input signal, and to ensure that the power supply voltage is stable before enabling the device.
