A good PCB layout for the LMK00334RTVTQ1 involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the LMK00334RTVTQ1, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins, and use a 10kΩ resistor in series with the power supply to prevent voltage spikes.
The LMK00334RTVTQ1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment. Also, avoid overheating the device during soldering and rework.
To troubleshoot issues with the LMK00334RTVTQ1's clock output, check the clock input signal quality, ensure the device is properly powered and decoupled, and verify the correct configuration of the device's registers. Use an oscilloscope to measure the clock output signal and verify its frequency and amplitude.
To minimize EMI and RFI issues with the LMK00334RTVTQ1, use a shielded enclosure, keep clock traces short and away from other signals, and use a common-mode choke or ferrite bead on the clock output. Additionally, ensure the device is properly grounded and decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK00334RTVTQ1 Overview

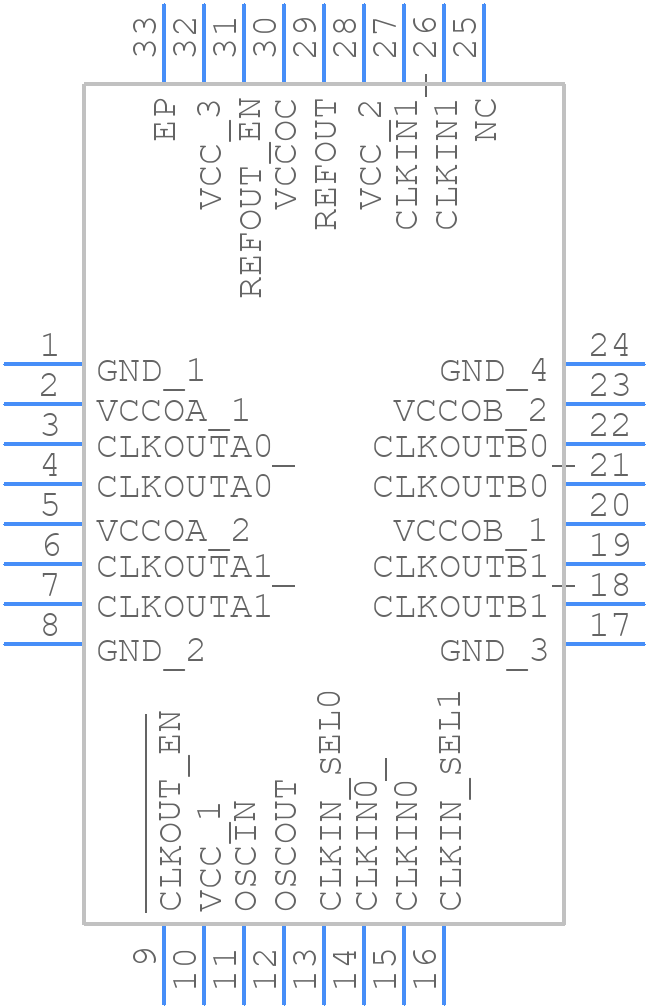

Use the download button to access the LMK00334RTVTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK00,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
