A good PCB layout for the LMK00804BPW involves keeping the input and output traces short and direct, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the LMK00804BPW, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device. Also, ensure that the power and ground pins are connected to a solid power and ground plane on the PCB.
The LMK00804BPW can support clock frequencies up to 2400 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
To configure the LMK00804BPW for a specific clock output frequency, use the device's internal PLL and dividers to generate the desired frequency. Consult the datasheet and application notes for more information on how to calculate the required PLL settings and divider values.
The typical power consumption of the LMK00804BPW varies depending on the clock frequency, output load, and other factors. However, according to the datasheet, the typical power consumption is around 350mW at 2400MHz output frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK00804BPW Overview

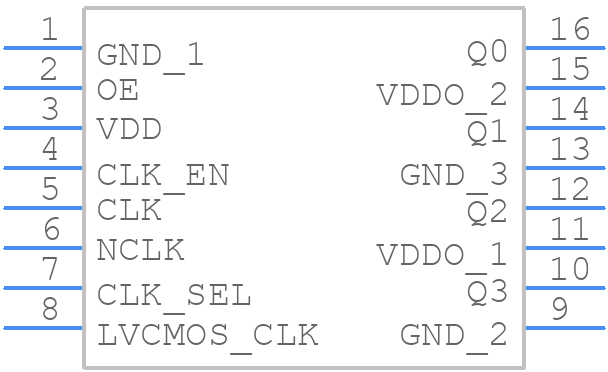

Use the download button to access the LMK00804BPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK00,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
