LMK00804BQWRGTRQ1 - Texas Instruments

Description: Clock Buffer Automotive, 1.5-V to 3.3-V, 1-to-4 high-performance LVCMOS fanout buffer & level translator 16-VQFN -40 to 125

Download LMK00804BQWRGTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

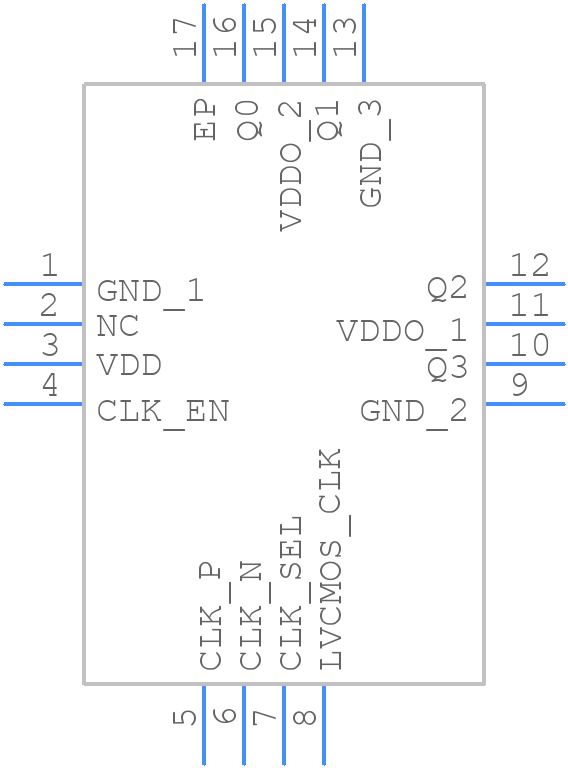

Symbol
LMK00804BQWRGTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK00804BQWRGTRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016J
click to zoom
3D Models
LMK00804BQWRGTRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016J
click to zoom

LMK00804BQWRGTRQ1 Details

  • Manufacturer Part Number:

    LMK00804BQWRGTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LMK

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    21 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    350 MHz

LMK00804BQWRGTRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the clock signal traces as short as possible and away from other signals. Additionally, it's recommended to use a common mode filter to reduce EMI.
  • The LMK00804BQWRGTRQ1 requires a clean and stable power supply. Ensure that the power supply voltage is within the recommended range, and use a low-ESR capacitor (e.g. 0.1uF) as close as possible to the power pin. Additionally, use a 10uF capacitor in parallel with a 0.1uF capacitor to filter out high-frequency noise.
  • The LMK00804BQWRGTRQ1 can support clock frequencies up to 2400 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • The LMK00804BQWRGTRQ1 can be configured using the SPI interface. Use the TI-provided software tools or consult the datasheet and application notes for more information on how to program the device for a specific clock output frequency.
  • The LMK00804BQWRGTRQ1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Consult the datasheet and thermal design guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK00804BQWRGTRQ1 Overview

Use the download button to access the LMK00804BQWRGTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK00, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
