LMK01010ISQ - Texas Instruments

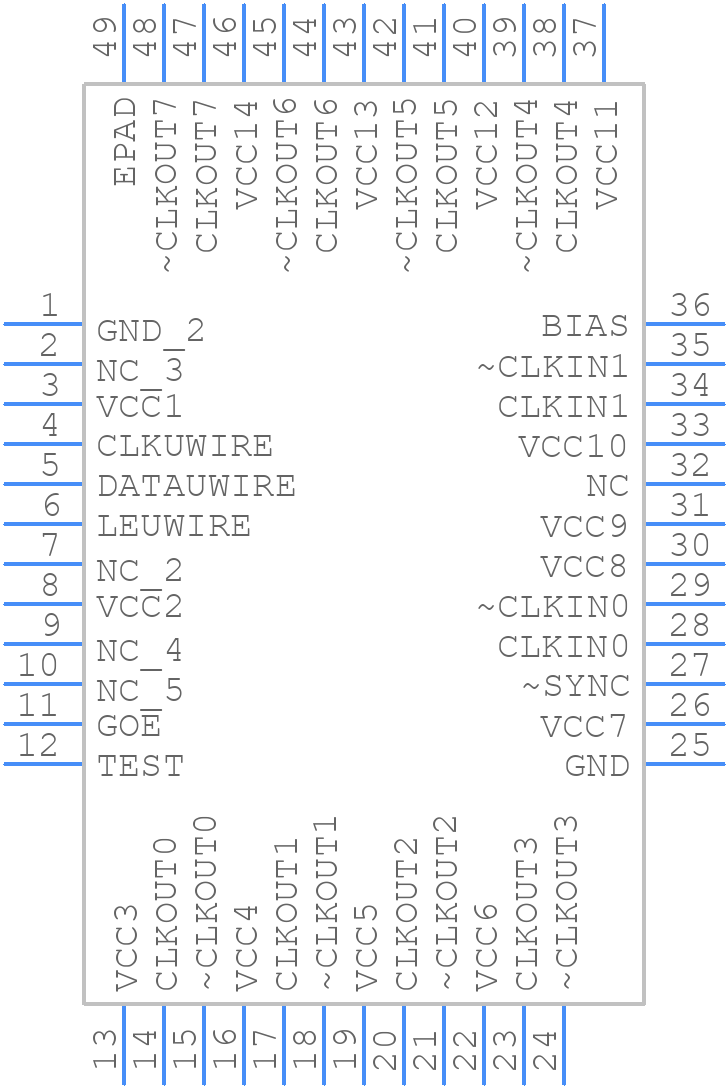

LMK01010ISQ Details

• Manufacturer Part Number:

  LMK01010ISQ

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  7 X 7 MM, 0.80 MM HEIGHT, LLP-48

• Pin Count:

  48

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Family:

  01010

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e0

• Length:

  7 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Max I(ol):

  0.0005 A

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  48

• Number of True Outputs:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  235

• Power Supply Current-Max (ICC):

  160 mA

• Prop. Delay@Nom-Sup:

  2.25 ns

• Propagation Delay (tpd):

  2.25 ns

• Same Edge Skew-Max (tskwd):

  0.03 ns

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  3.45 V

• Supply Voltage-Min (Vsup):

  3.15 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
