Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The LMK03002 requires a clean and stable power supply. Ensure that the power supply voltage is within the recommended range, and use adequate decoupling capacitors (e.g., 0.1uF and 10uF) close to the device to filter out noise and ripple.
The LMK03002 can support clock frequencies up to 3072 MHz, but the maximum frequency may vary depending on the specific application and output load. It's recommended to consult the datasheet and perform simulations to ensure the device can meet the required frequency and output load.
The LMK03002 can be configured using the SPI interface to set the desired clock output frequency. The device has a range of pre-defined frequency settings, and the specific configuration will depend on the desired output frequency and application requirements.
The typical power consumption of the LMK03002 is around 350mW, but this can vary depending on the specific application, clock frequency, and output load. It's recommended to consult the datasheet and perform power consumption calculations to ensure the device meets the required power budget.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK03002CISQX/NOPB Overview

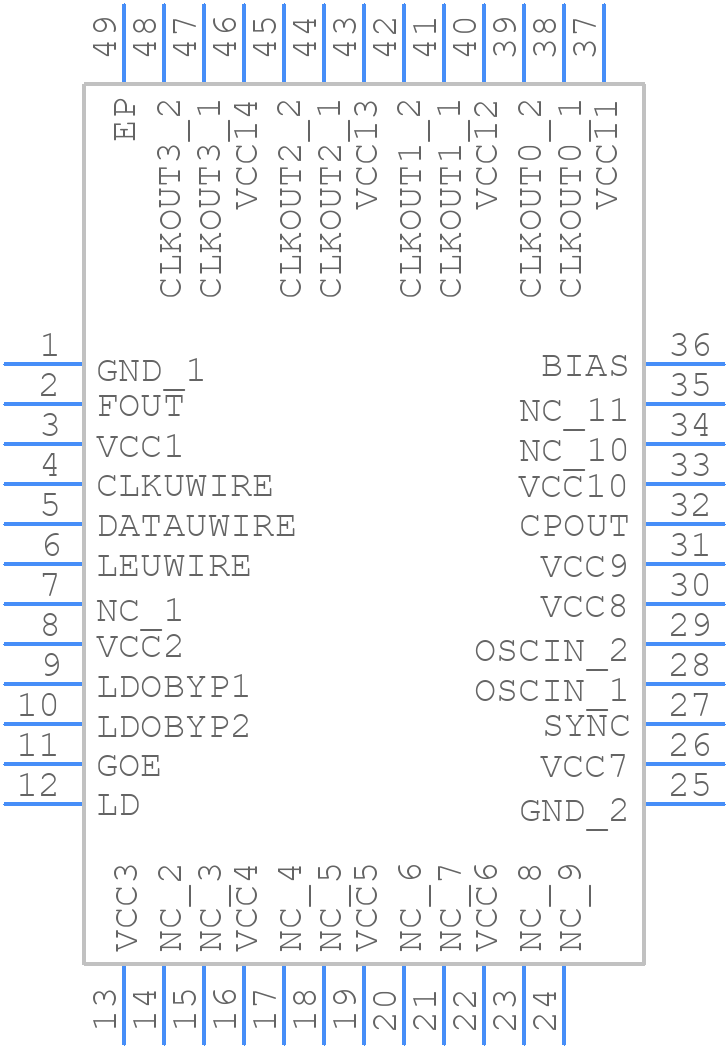

Use the download button to access the LMK03002CISQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03,
or try a keyword search, such as Clock Generators
