LMK03033ISQE/NOPB - Texas Instruments

Description: Precision Clock Conditioner with Integrated VCO

Download LMK03033ISQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

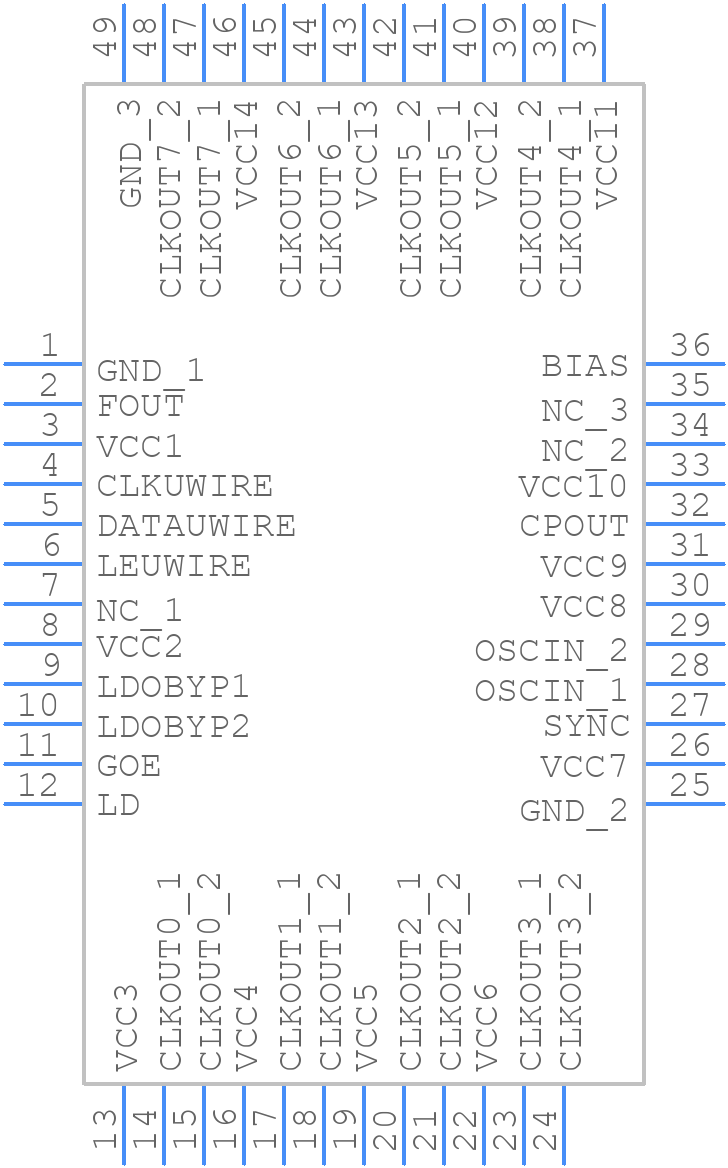

LMK03033ISQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK03033ISQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
LMK03033ISQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

LMK03033ISQE/NOPB Details

  • Manufacturer Part Number:

    LMK03033ISQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    1296 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    200 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

LMK03033ISQE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
  • The LMK03033 requires a clean and stable power supply. Ensure that the power supply voltage is within the recommended range, and use adequate decoupling capacitors (e.g., 0.1uF and 10uF) close to the device to filter out noise and ripple.
  • The LMK03033 can support clock frequencies up to 3072 MHz, but the maximum frequency may vary depending on the specific application and output load. It's recommended to consult the datasheet and perform simulations to ensure the device can meet the required frequency and output load.
  • The LMK03033 has a programmable clock output frequency. Use the device's register map to configure the desired output frequency. The datasheet provides a detailed description of the register map and the calculation for setting the output frequency.
  • The typical power consumption of the LMK03033 is around 350mW, but this can vary depending on the specific application, output load, and clock frequency. Consult the datasheet for more information on power consumption and thermal considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK03033ISQE/NOPB Overview

Use the download button to access the LMK03033ISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03, or try a keyword search, such as Clock Generators
