LMK03200ISQE/NOPB - Texas Instruments

Description: Precision 0-Delay Clock Conditioner with Integrated VCO

Download LMK03200ISQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

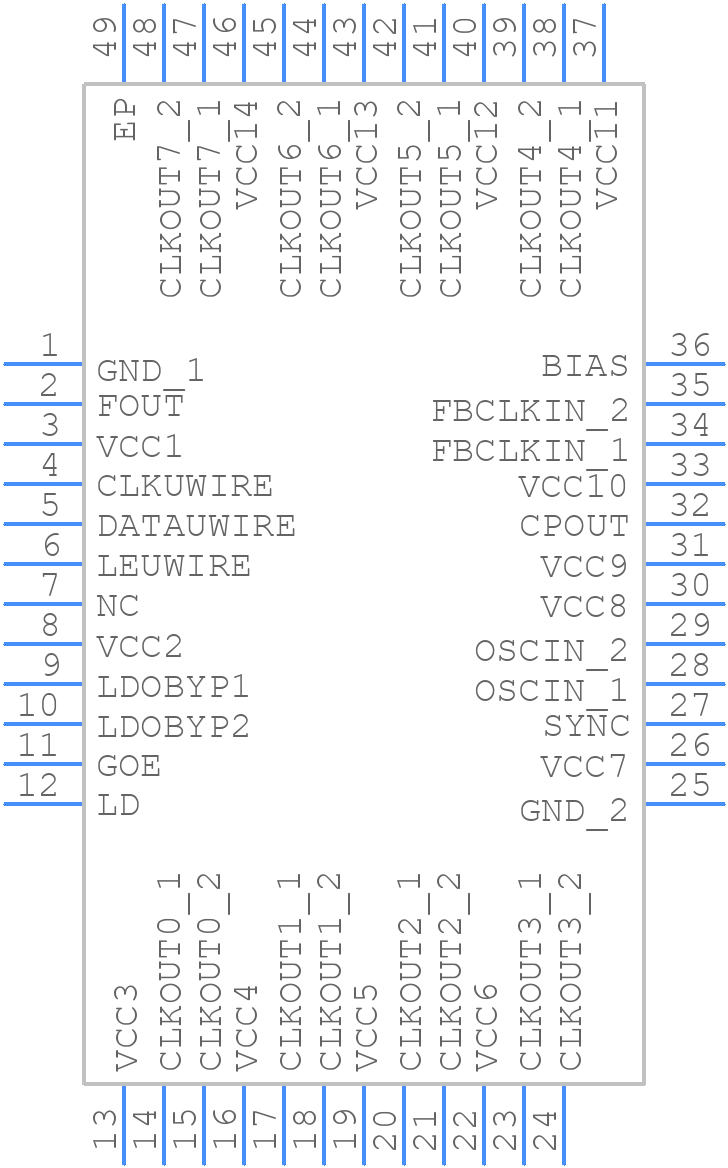

Symbol
LMK03200ISQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK03200ISQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
LMK03200ISQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

LMK03200ISQE/NOPB Details

  • Manufacturer Part Number:

    LMK03200ISQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LCC-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    03200

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.0005 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    161.8 mA

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.03 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    1296 MHz

LMK03200ISQE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
  • The LMK03200 requires a clean and stable power supply. Ensure that the power supply rails are well-decoupled with a combination of ceramic and electrolytic capacitors, and that the voltage regulator is capable of providing a low-noise output. Additionally, follow the recommended power-up sequence outlined in the datasheet.
  • The maximum clock frequency of the LMK03200 is 3.2 GHz, but this can vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the maximum achievable frequency for a specific design.
  • The LMK03200 can be configured using a combination of pin settings and register programming. Consult the datasheet and the device's programming guide to determine the correct settings for the desired clock output frequency.
  • The typical jitter performance of the LMK03200 is <500 fs RMS, but this can vary depending on the specific application and operating conditions. Consult the datasheet and perform measurements to determine the actual jitter performance in a specific design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK03200ISQE/NOPB Overview

Use the download button to access the LMK03200ISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
