A good PCB layout for the LMK03318RHSR involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
To configure the LMK03318RHSR for a specific clock frequency output, you need to set the appropriate values for the DIV, MUX, and PLL registers. You can use the TI Clock Design Tool or the LMK03318RHSR datasheet to determine the correct register settings for your desired output frequency.
The maximum output current of the LMK03318RHSR is 15 mA. To ensure that it can drive your load, you need to calculate the total output current required by your system and ensure that it is within the maximum rating of the device. You may also need to add external buffers or amplifiers to increase the output current capability.
To troubleshoot issues with the LMK03318RHSR, start by checking the power supply voltage, clock input signal, and PCB layout for any noise or interference. Use an oscilloscope to measure the clock output signal and check for any signs of jitter or frequency instability. You can also use the TI Clock Design Tool to simulate the device's behavior and identify potential issues.
Yes, the LMK03318RHSR can be used in a system with multiple clock domains. To ensure CDC integrity, you need to use clock domain crossing circuits or synchronizers to transfer data between clock domains. You should also ensure that the clock frequencies and phases are properly aligned to prevent metastability and data corruption.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK03318RHSR Overview

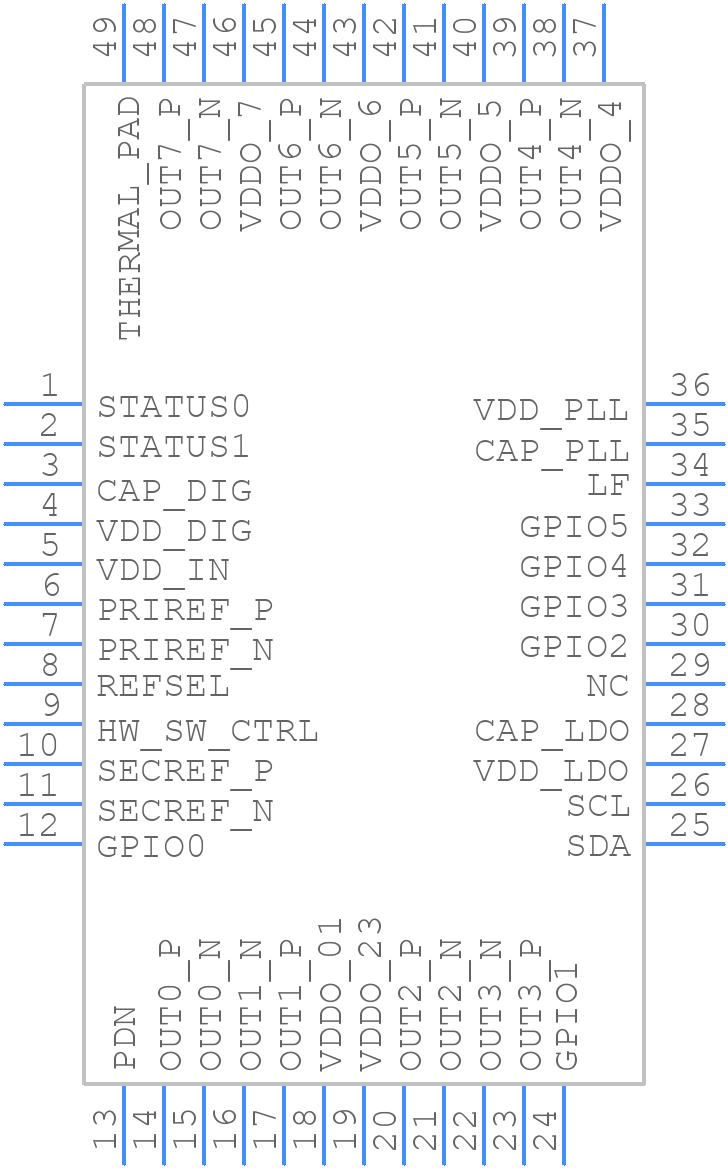

Use the download button to access the LMK03318RHSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03,
or try a keyword search, such as Clock Drivers
