Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The LMK04001BISQE/NOPB requires a stable power supply with minimal noise and ripple. Use a low-ESR capacitor (e.g., 100nF) close to the power pins, and consider adding a 10uF bulk capacitor for further decoupling. Ensure the power supply can provide the required current (typically 100mA).
The LMK04001BISQE/NOPB can support clock frequencies up to 2.5GHz, but the actual maximum frequency may depend on the specific application, PCB layout, and signal quality. Consult the datasheet and application notes for more information.
The LMK04001BISQE/NOPB has a programmable PLL that allows for flexible clock output frequency configuration. Use the device's register map and programming guide to set the desired frequency, and consult the datasheet for specific register settings and equations.
The LMK04001BISQE/NOPB has a typical jitter performance of <1ps RMS for the clock output, but this can vary depending on the specific application, PCB layout, and signal quality. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK04001BISQE/NOPB Overview

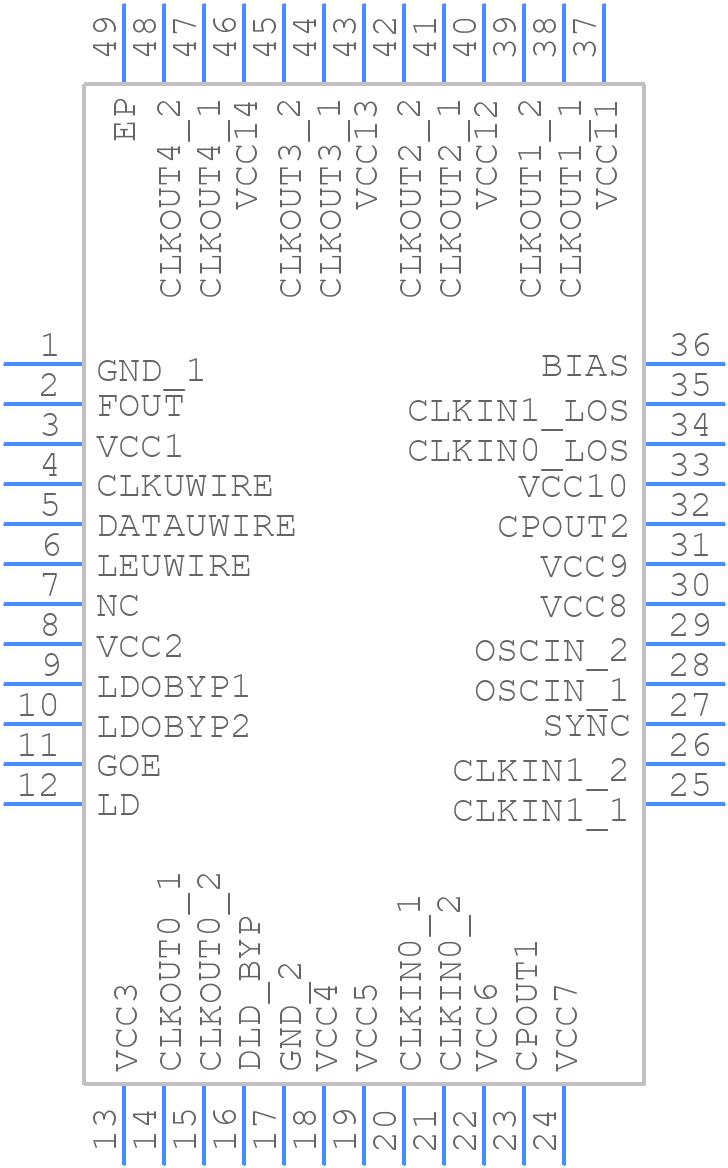

Use the download button to access the LMK04001BISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK04,
or try a keyword search, such as Clock Drivers
