A good PCB layout for the LMK1C1102DQFR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper bypassing, place a 0.1uF ceramic capacitor between the VDD pin and the GND pin, and a 10uF electrolytic capacitor between the VDD pin and the GND pin. The capacitors should be placed as close to the device as possible.
The LMK1C1102DQFR has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 125°C for short periods of time, but this may affect its reliability and lifespan.
To troubleshoot issues with the LMK1C1102DQFR, start by checking the power supply voltage, ensuring it is within the recommended range. Then, verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure the device is properly bypassed and decoupled.
Yes, the LMK1C1102DQFR is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK1C1102DQFR Overview

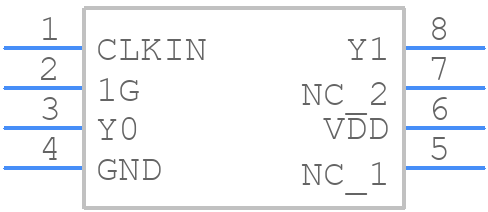

Use the download button to access the LMK1C1102DQFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK1C,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
