Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock and data signals.
The LMK5B12204RGZR is a highly configurable device. To configure it for a specific clock frequency, refer to the device's programming guide and use the TI-provided software tools, such as the LMK5B12204RGZR Evaluation Module GUI or the Clock Design Tool.
The LMK5B12204RGZR has an operating temperature range of -40°C to 85°C. However, it's essential to consider the device's thermal characteristics and ensure proper thermal management to maintain reliability and performance.
To ensure signal integrity and minimize jitter, follow good high-frequency design practices, such as using differential signaling, minimizing trace lengths, and using signal conditioning components like terminators and filters. Additionally, consider using the device's built-in jitter attenuator and signal conditioning features.
The LMK5B12204RGZR requires a 3.3V power supply, and it's essential to ensure a clean and stable power supply to maintain device performance and reliability. Consider using a low-dropout regulator (LDO) and decoupling capacitors to minimize power supply noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK5B12204RGZR Overview

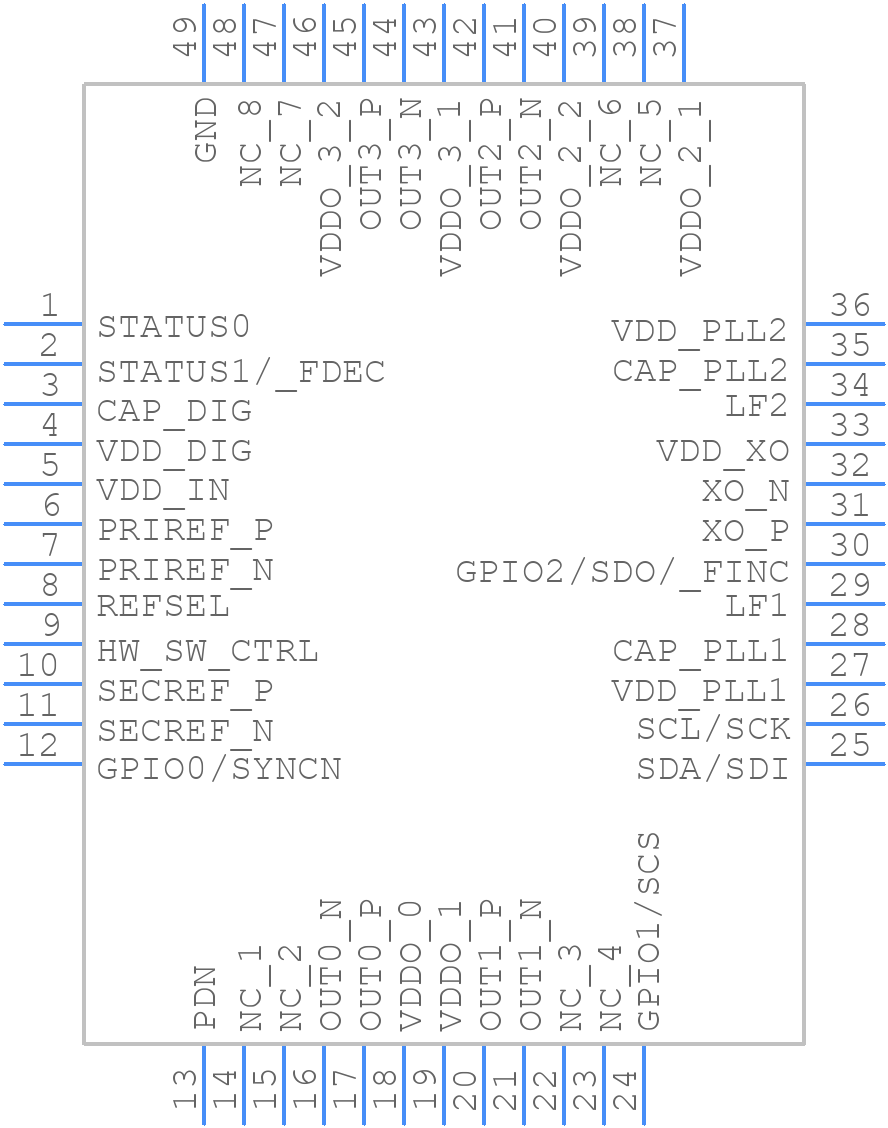

Use the download button to access the LMK5B12204RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK5B,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
