LMK61E2-SIAT - Texas Instruments

Description: Clock Generators & Support Products Ultra-Low Jitter Fully Programmable Oscillator, Integrated EEPROM, +/-50ppm 8-QFM -40 to 85

Download LMK61E2-SIAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

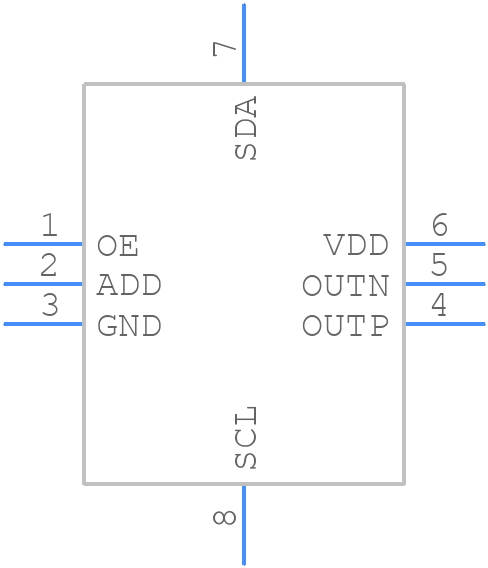

Symbol
LMK61E2-SIAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK61E2-SIAT - Texas Instruments PCB footprint - Other - Other - SIA0008B_1
click to zoom
3D Models
LMK61E2-SIAT - Texas Instruments - 3D model - Other - SIA0008B_1
click to zoom

LMK61E2-SIAT Details

  • Manufacturer Part Number:

    LMK61E2-SIAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVPECL

  • Output Load:

    150 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.15mm

  • Rise Time-Max:

    0.2 ns

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

LMK61E2-SIAT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the clock signal traces as short as possible and away from other signals. Additionally, use a common mode filter or a ferrite bead to filter out high-frequency noise.
  • Use a low-ESR capacitor (e.g., 100nF) as close as possible to the VCC pin, and a larger capacitor (e.g., 10uF) further away. Ensure the power supply is clean and regulated, and consider adding a voltage regulator if necessary.
  • The recommended clock input signal is a differential signal with a peak-to-peak amplitude of 1.5V to 2.5V, and a common-mode voltage of 1.5V. The clock signal should be AC-coupled to the device.
  • Use the TI Clock Design Tool or the LMK61E2-SIAT datasheet to determine the correct register settings for the desired frequency output. The device can be configured using the SPI interface or by using the internal PLL.
  • The LMK61E2-SIAT is specified to operate from -40°C to 85°C. However, the device can be operated at temperatures up to 105°C with reduced performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK61E2-SIAT Overview

Use the download button to access the LMK61E2-SIAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK61, or try a keyword search, such as XO
